CA5X-22M
General Information
Extended Product Type:CA5X-22M
Product ID:1SBN019040R1122
Catalog Description:CA5X-22M Auxiliary contact block
Long Description:CA5X-22E is a 4-pole front mounted auxiliary contact block equipped with screw terminals. CA5X-..E version offers terminal assortment matching the marking of 3-pole AX50..150 contactors. CA5X-22E is available with 2 N.O. and 2 N.C. instantaneous contacts for standard industrial environments.
Categories
Products » Low Voltage Products and Systems » Control Products » Contactors » Block Contactors Accessories

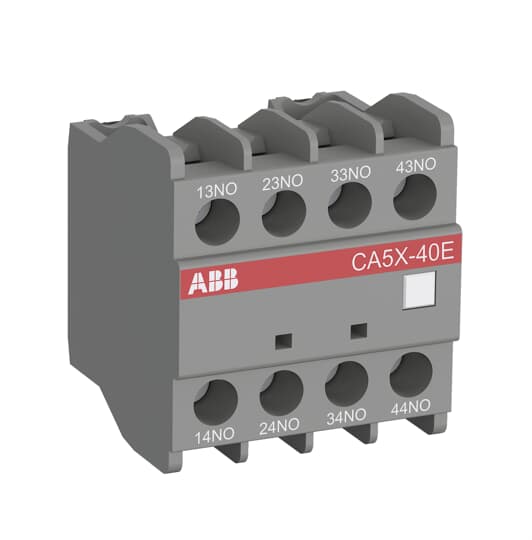

CA5X-22M - image 0
Ordering
Minimum Order Quantity:2 piece
Customs Tariff Number:85030099
Product Main Type:Accessories for Block Contactors
Popular Downloads
Instructions and Manuals:1SBC101044M9801
CAD Dimensional Drawing:2CDC001079B0201
Dimensions
Product Net Width:43 mm
Product Net Depth / Length:32.5 mm
Product Net Height:47 mm
Product Net Weight:0.06 kg
Technical
Maximum Electrical Switching Frequency:(AC-15) 1200 cycles per hour
(DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency:3600 cycles per hour
Number of Auxiliary Contacts NC:2
Number of Auxiliary Contacts NO:2
Rated Insulation Voltage (Ui):acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
Rated Operational Current AC-15 (Ie):(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie):(24 V) 6 A / 144 W
(110 V) 0.55 A / 60 W
(125 V) 0.55 A / 69 W
(220 V) 0.30 A / 66 W
(250 V) 0.30 A / 75 W
(400 V) 2.8 A / 134 W
(500 V) 1 A / 72 W
Rated Operational Voltage:Auxiliary Circuit 690 V
Main Circuit 690 V
Rated Short-time Withstand Current Low Voltage (Icw):for 0.1 s 140 A
for 1 s 100 A
Suitable For:AX06
AX09
AX12
AX18
AX25
AX32
AX40
