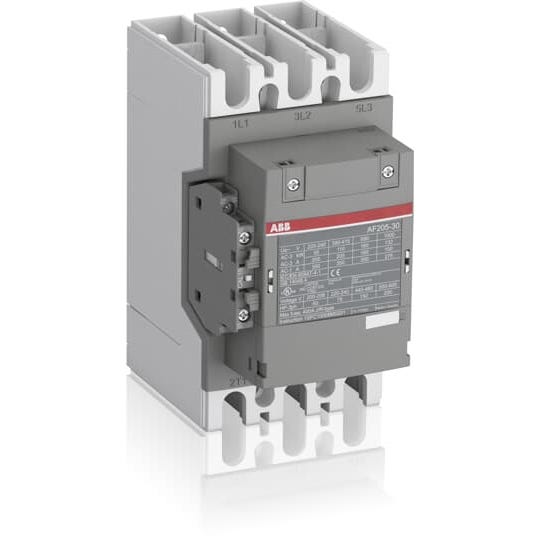

Kontaktor ABB AX205-30-11 380-400V

Name: Kontaktor ABB AX205-30-11 380-400V
Brand: ABB
SKU: 0016287
Price: 5279000.0 IDR
Availability: OutOfStock

ABBSKU: 0016287

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Dimensions

Product Net Width: 111.5 mm

Product Net Depth / Length: 162.3 mm

Product Net Height: 196 mm

Product Net Weight: 3.2 kg

Technical

Number of Main Contacts NO: 3

Number of Main Contacts NC: 0

Number of Auxiliary Contacts NO: 1

Number of Auxiliary Contacts NC: 1

Rated Operational Voltage: Main Circuit 1000 V

Rated Frequency (f): Main Circuit 50 Hz

Conventional Free-air Thermal Current (I_th): acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 275 A

(690 V) 55 °C 250 A

(690 V) 70 °C 180 A

Rated Operational Current AC-3 (I_e):

(415 V) 55 °C 205 A

(440 V) 55 °C 185 A

(500 V) 55 °C 170 A

(690 V) 55 °C 170 A

(380 / 400 V) 55 °C 205 A

(220 / 230 / 240 V) 55 °C 205 A

Rated Operational Power AC-3 (P_e):

(415 V) 110 kW

(440 V) 90 kW

(500 V) 110 kW

(690 V) 132 kW

(380 / 400 V) 110 kW

(220 / 230 / 240 V) 59 kW

Rated Breaking Capacity AC-3: 8 x Ie AC-3

Rated Making Capacity AC-3: 10 x Ie AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1200 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 280 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 600 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1800 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 800 A

Maximum Electrical Switching Frequency: 300 cycles per hour

Rated Insulation Voltage (U_i): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

Rated Impulse Withstand Voltage (U_imp): 8 kV

Mechanical Durability: 5 million

Maximum Mechanical Switching Frequency: 3600 cycles per hour

Coil Operating Limits: (acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)

Rated Control Circuit Voltage (U_c):

50 Hz 230 ... 240 V

60 Hz 240 ... 260 V

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40

Terminal Type:

Main Circuit: Bars

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C

Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C

Close to Contactor for Storage -40 ... 70 °C

Maximum Operating Altitude Permissible:

Without Derating 3000 m
