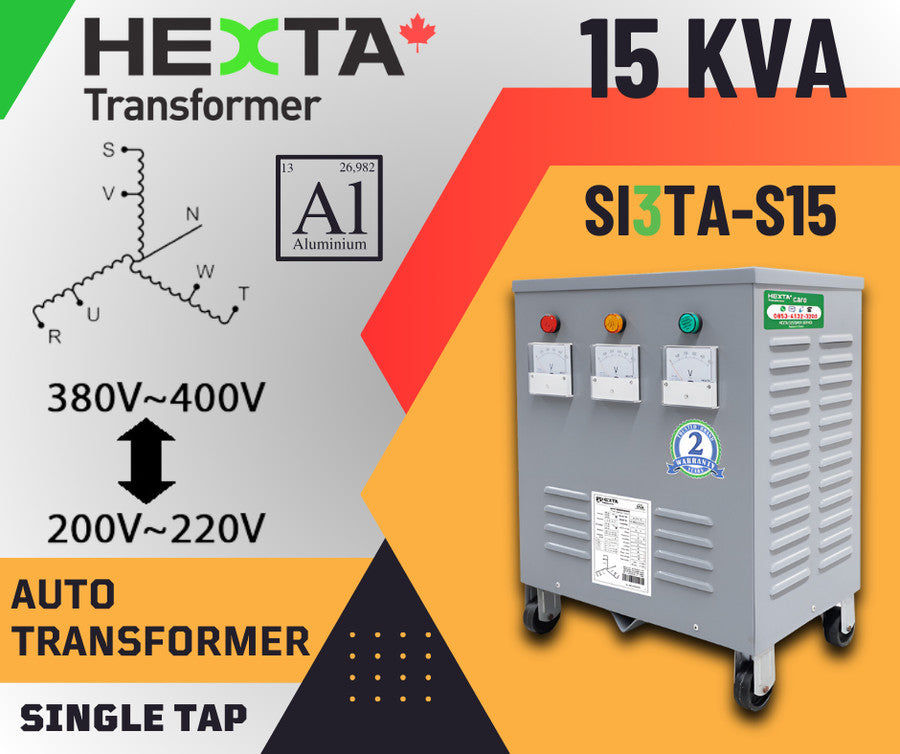

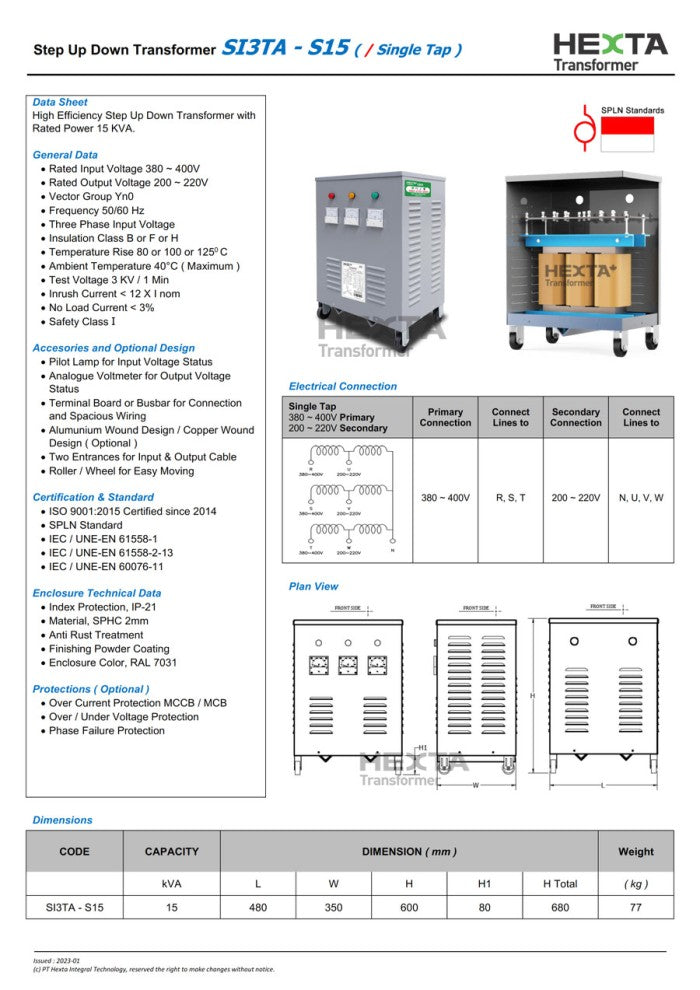

Capacity : 15 KVA
Primary : 3 x 380 V + N
Secondary : 3 x 200 V
Frequency : 50/60 Hz
Type : Dry - AL
Connection : Yn0
Inrush Current : < 12 X I nom
No Load Current : < 3%
Test Voltage : 3 KV
Insulation Class : B (130°c)
Protection degree : IP 21
Safety : Class I
Standard :
- IEC /EN 61588-1
- IEC /EN 61588-2-13
- IEC /EN 60076-11
Dimension : L x W x T ( 510 mm X 400 mm X 760 mm )
Weight : 91 Kg
PROTECTION (OPTIONAL)
- Over Current Protection
- Over / Under Protection
- Phase Failure Protection
7 Keunggulan Hexta Transformer
- Low Losses
- Low Noise
- Heavy Duty
- High Efficiency > 98%
- Strong Mechanical Structure
- Core GOSS M4 0.27 mm Japan
- Enclosure :
• Anti Rush Treatment
• Power Coating Painted
Kenapa Hexta Transformer ?
1.Berpengalaman lebih dari 30 Tahun
2.Team Engineering yang solid
3.Kualitas mutu Manajemen ISO 9001
4.1 to 1 Replacement ( Hexta Premium )
5.After Sales Service 1X24 Jam
