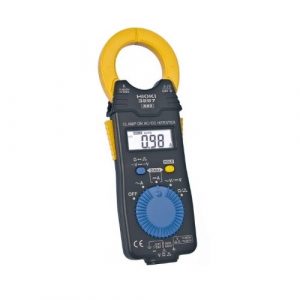

Clamp Meter(Tang Ampere) Hioki 3288-20 AC/DC 1000A True RMS

Akurasi Terjamin: 1 tahun

Pengukuran Arus:

• 3288: DC 100.0 / 1000 A ±1.5 % rdg ±5 dgt, AC 100.0 / 1000 A (10–500 Hz, Average rectified) ±1.5 % rdg ±5 dgt

• 3288-20: DC 100.0 / 1000 A ±1.5 % rdg ±5 dgt, AC 100.0 / 1000 A (10–500 Hz, True RMS) ±1.5 % rdg ±5 dgt

Pengukuran Tegangan:

• DC: 419.9 mV – 600 V, 5 range, ±1.3 % rdg ±4 dgt

• AC: 4.199 V – 600 V, 4 range, ±2.3 % rdg ±8 dgt, 30–500 Hz

  • 3288: Average rectified AC

  • 3288-20: True RMS AC

Pengukuran Resistansi: 419.9 Ω – 41.99 MΩ, 6 range, ±2 % rdg ±4 dgt

Crest Factor:

• 3288: N/A

• 3288-20: ≤3 (2 pada 1000 A, 1.5 pada Voltage)

Fungsi Tambahan: Continuity check (≤50 Ω ±40 Ω) dengan buzzer, Data Hold, Auto Power Save, Auto Zero (DC A)

Display: LCD, max 4199 digit, refresh rate 2.5 kali/s

Daya / Baterai: 1 × CR2032 coin battery

• Continuous use: 3288 → 60 jam, 3288-20 → 35 jam

Core Jaw: φ 35 mm (1.38 in)

Dimensi & Berat: 57 × 180 × 16 mm (W×H×D), 150 g

Aksesoris Termasuk: CR2032 battery ×1, Carrying case 9398 ×1, Test Lead L9208 ×1, Instruction manual ×1
