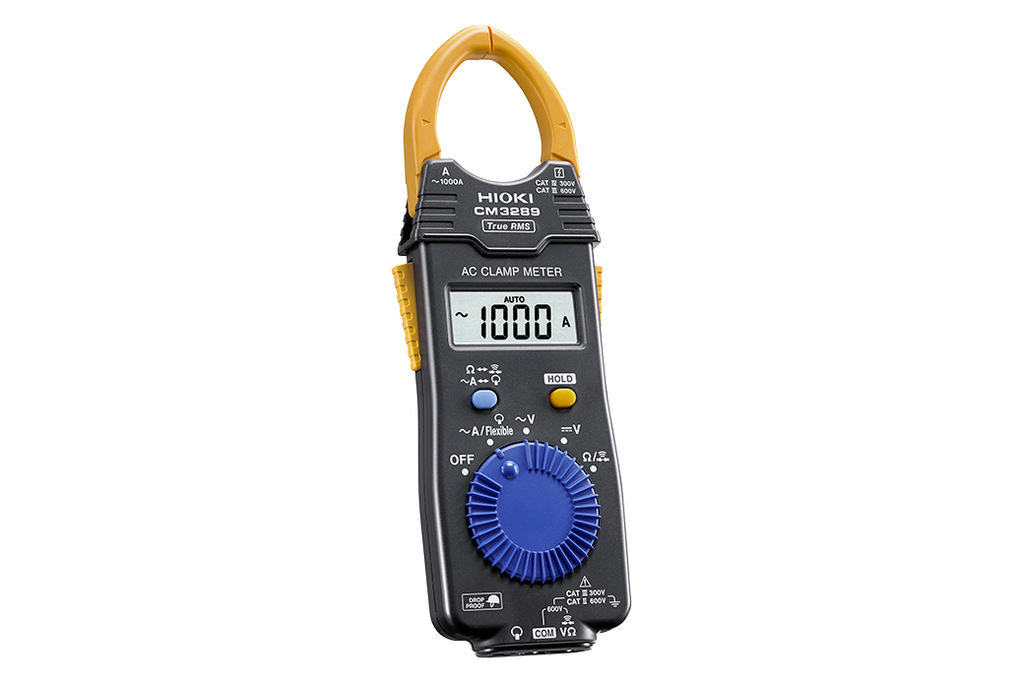

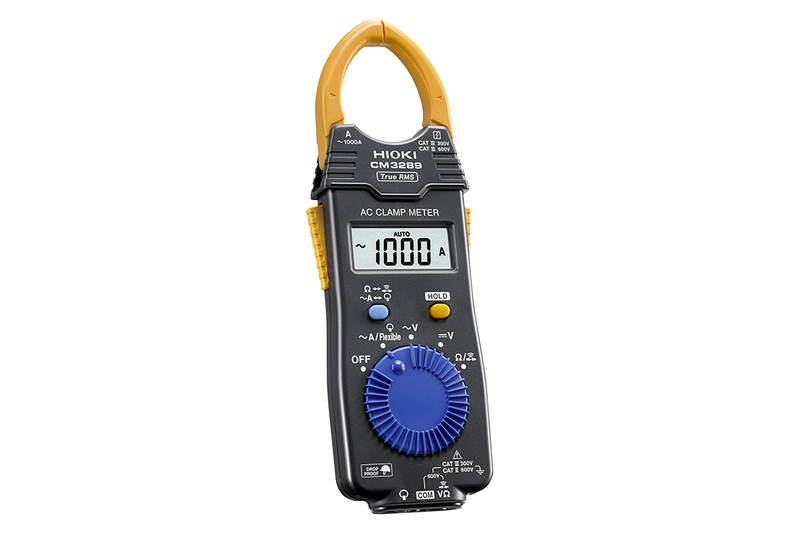

Tang Ampere Hioki CM3289

Name: Tang Ampere Hioki CM3289
Brand: Hioki
SKU: 0017280
Price: 1910000.0 IDR
Availability: OutOfStock

HiokiSKU: 0017280

Share this product

Basic specifications

Accuracy guaranteed: 1 year

AC Current range	42 to 1000 A, 3 ranges (40 Hz to 1 kHz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range	420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range	4.200 V to 600 V, 4 ranges (45 to 500 Hz, True RMS), Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor	2.5 or less at 2500 counts (Linearly decreases to 1.5 or less at 4200 count)
Resistance range	420.0 Ω to 42 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions	Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display	LCD, max. 4199 dgt., Display refresh rate: 400 ms
Power supply	Coin type lithium battery (CR2032) ×1 Continuous use 70 hours
Core jaw dia.	φ 33 mm (1.30 in)
Dimensions and mass	57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Included accessories	CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1

Accuracy guaranteed: 1 year

Core jaw dia.	φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in))
AC Current	419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
Cable length	800 mm (31.5 in)
