Description

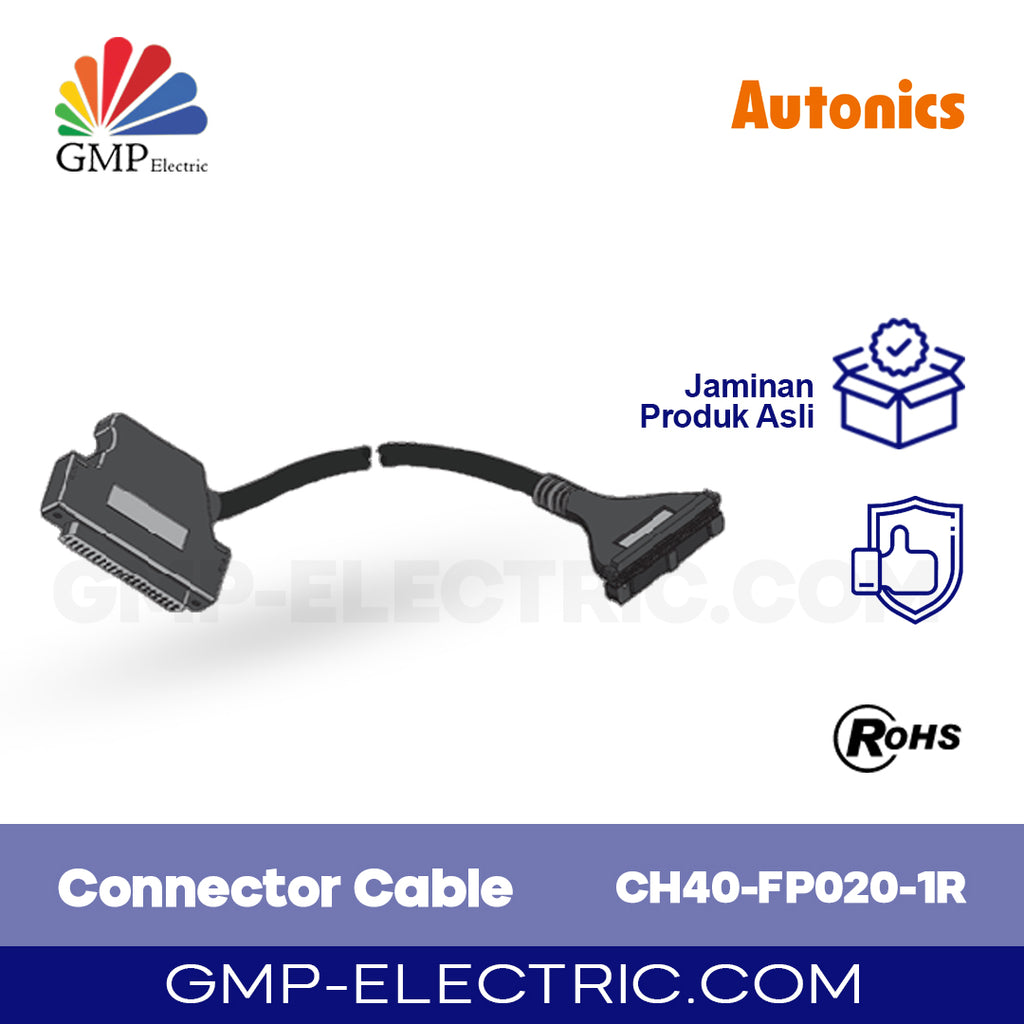

- Connector for PLC : Fujitu 40pin socket
- Connector for terminal block : Hirose 40pin socket
- Applicable cable : UL 20276 TWIST 40C
- Conductor characteristics : 7/0.127mm(AWG 28)×20P
- Insulation diameter : 0.12mm²
| Connector for PLC | Fujitu 40pin socket |
|---|---|
| Connector for terminal block | Hirose 40pin socket |
| Number of connector pins | 40-pin |
| Applicable cable | UL 20276 TWIST 40C |
| Conductor characteristics | 7/0.127mm(AWG 28)×20P |
| Insulation diameter | 0.12mm² |
| Cable diameter | Ø7.2mm(40C) |
| Rated current | ≤1A |
| Conductor resistance | ≤0.223Ω/m |
| Insulation voltage | 500VAC~ 50/60Hz for 1 min. |
| Insulation resistance | ≥15MΩ/km |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 196g |
