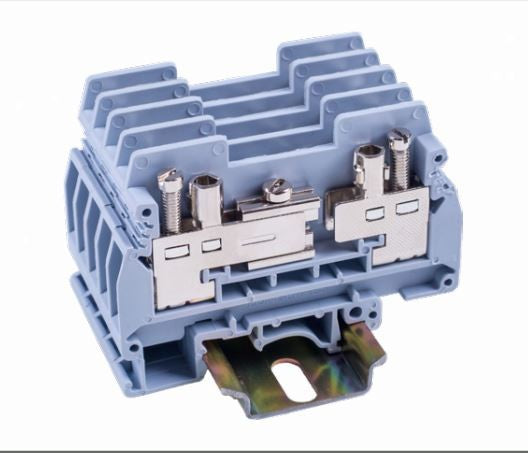

🔹 Sertifikasi: CB / CE / CQC / RoHS
🔹 Dimensi: 6.2 x 51 x 46.5 mm
🔹 Material:
-
Screw: M3, Zinc-Coated Steel
-
Pressure Frame: Nickel-Coated Brass
-
Conductor: Nickel-Coated Brass
-
Housing: PA66/V-0 (Tahan Panas & Api)
📌 Data Listrik:
✅ Standar: IEC 60947-7-1, UL 1059
✅ Tegangan Maksimum: 400V (IEC) / 300V (UL)
✅ Arus Maksimum: 57A (IEC) / 40A (UL)
📌 Data Pengkabelan:
✔️ Strip Length: 13 mm
✔️ Kabel Fleksibel: 0.5 ~ 6 mm²
✔️ Kabel Rigid: 0.5 ~ 10 mm²
✔️ Imperial Wire: AWG 20 ~ 8
✔️ Clamping Screw: M4 (1.2 ~ 1.5 Nm)
✔️ Disconnecting Screw: M3 (0.6 ~ 0.8 Nm)
⚡ Aplikasi:
🔹 Panel listrik industri
🔹 Sistem distribusi daya
🔹 Rangkaian kontrol dan otomasi
