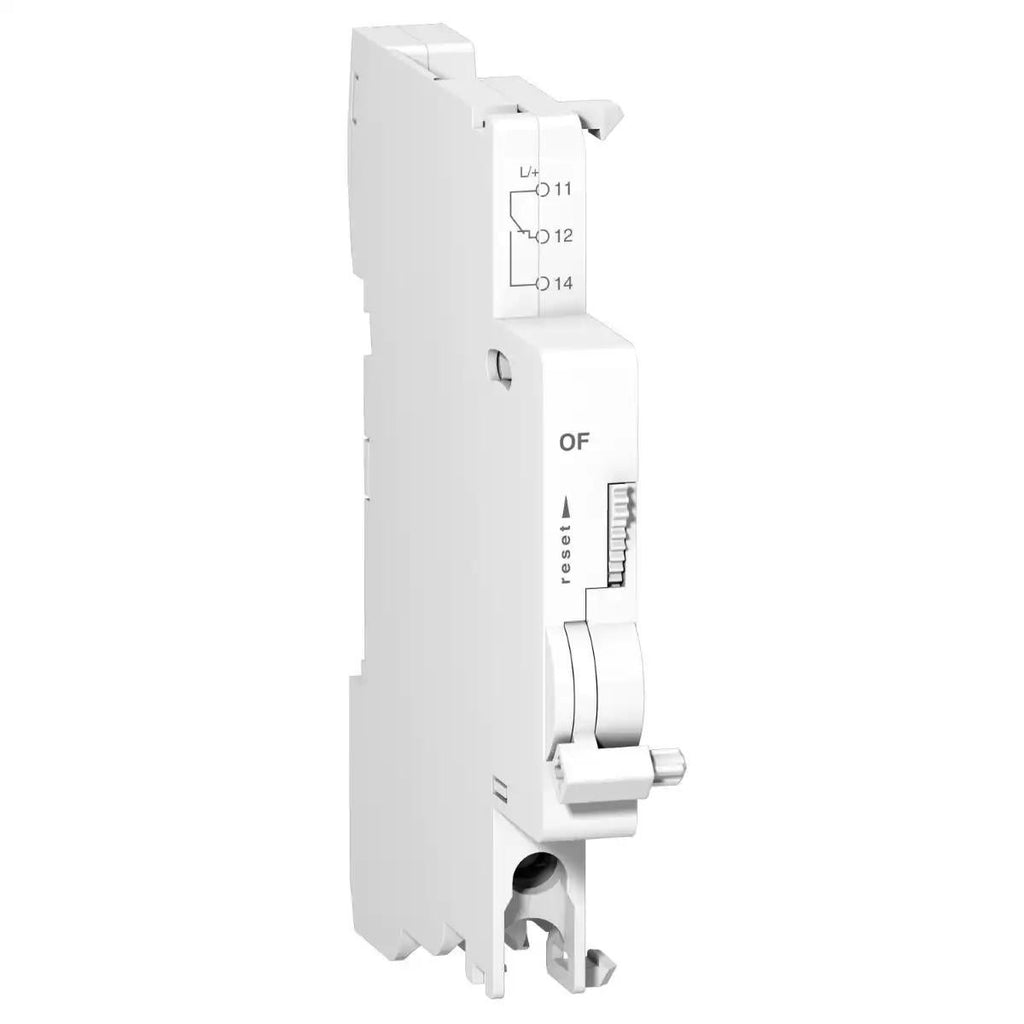

Auxiliary Contact Schneider A9N26924 DPN VIGI 3A 415V

Prodis
Acti 9
Librio
Clario

OC contact

OF

1 C/O

3 A: 380...415 V AC - 50/60 Hz
6 A: 220...240 V AC - 50/60 Hz
1 A: 130 V DC
1.5 A: 60 V DC
2 A: 48 V DC
6 A: 24 V DC

24...415 V AC 50/60 Hz
24...130 V DC

1

Acti 9 DPN Vigi
Acti 9 RCCB-ID
Acti 9 C60H-DC
Acti 9 C60PV-DC
Acti 9 C40
Acti 9 ID C40
Acti 9 C120
Acti 9 DT40
Acti 9 DT60
Acti 9 IDc
Acti 9 C120NA-DC
Acti 9 iDPN
Acti 9 ITG40
Acti 9 SW60-DC
Acti 9 C60NA-DC

Fixed

DIN rail

85.3 mm

9 mm

73.5 mm

30 g

White

Clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible
Clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid
Clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule

9 mm

1 N.m

EN/IEC 60947-5-1

ASEFA
KEMA
LCIE
ASTA

IP20 conforming to EN/IEC 60947-5-1

3 conforming to EN/IEC 60947-5-1

2 conforming to EN/IEC 60947-5-1

-25…50 °C

-40…85 °C
