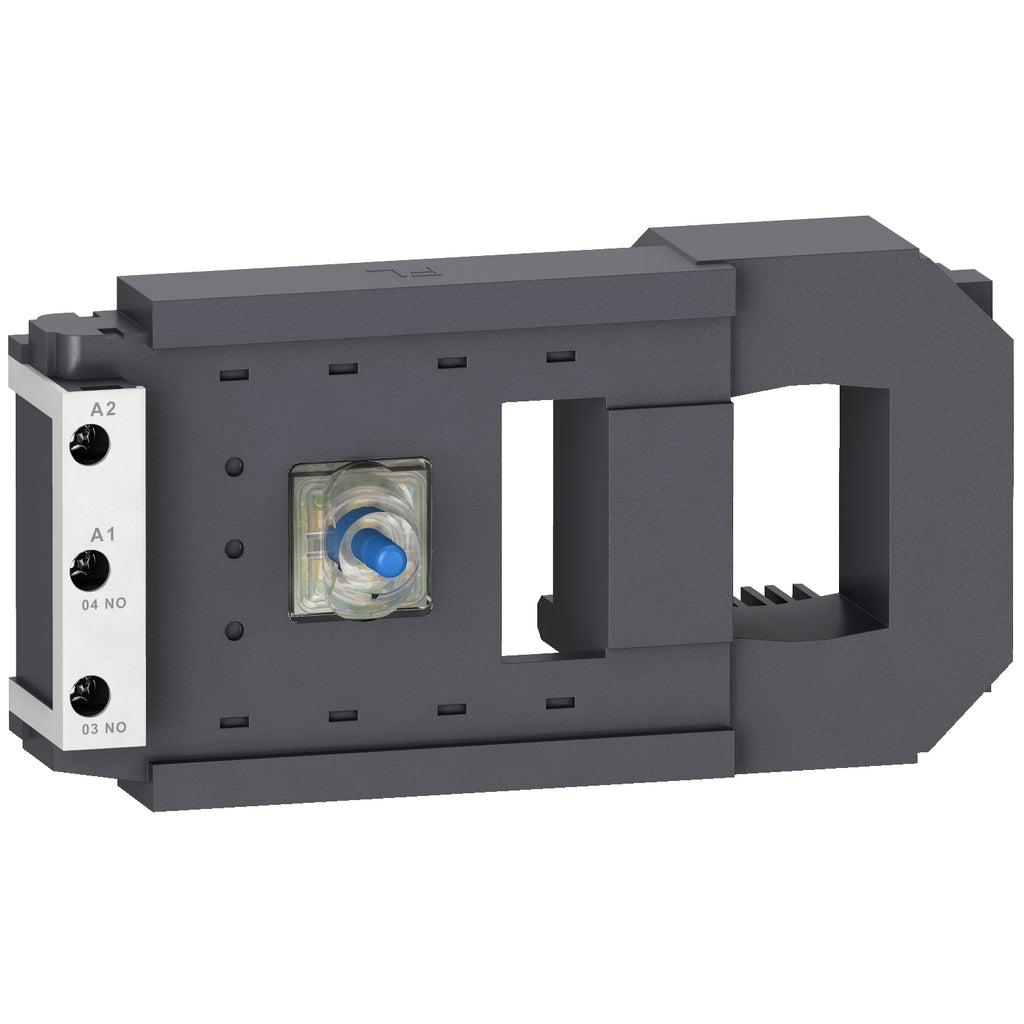

Coil Magnetic Contactor Schneider LX9-FG110 110V F/ LC1F185/225

Roll over image to zoom in

Coil Magnetic Contactor Schneider LX9-FG110 110V F/ LC1F185/225

Name: Coil Magnetic Contactor Schneider LX9-FG110 110V F/ LC1F185/225
Brand: SCHNEIDER
SKU: 0014592
Price: 1600000.0 IDR
Availability: InStock

★★★★★(17)

78 Terjual

Save 32%

SCHNEIDERSKU: 0014592

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range	TeSys
Product or component type	Specific contactor coil
Device short name	LX9FG
Range compatibility	TeSys (TeSys F) LC1F contactor
Product compatibility	LC1F185 LC1F225
Control circuit type	AC at 40...400 Hz low consumption
[Uc] control circuit voltage	110...115 V AC 40...400 Hz
Inductance of closed circuit	1.46 H
Average resistance	10.4 Ohm inrush at 20 °C 411 Ohm holding at 20 °C
Operating time	130 ms opening 35 ms closing
Mechanical durability	10 Mcycles
Maximum operating rate	2400 cyc/h 55 °C

Complementary
Coil technology	Without built-in suppressor module
Control circuit voltage limits	Operational: 0.85...1.1 Uc (at 55 °C) Drop-out: 0.2...0.55 Uc (at 55 °C)
Inrush power in VA	950…1180 VA 40...400 Hz (at 20 °C)
Hold-in power consumption in VA	8.9…10.9 VA 40...400 Hz (at 20 °C)
Heat dissipation	8…9.8 W

Environment
Ambient air temperature for operation	-5…55 °C
Net weight	0.55 kg
