Kabel NYFGBY merupakan kabel listrik yang sering diaplikasikan untuk instalasi bawah tanah maupun instalasi yang memerlukan perlindungan mekanis. Harga kabel NYFGBY harganya lebih mahal di bandingkan dengan harga kabel NYY. Kami menjual semua tipe untuk kabel NYFGBY
NB :
- Kita juga melayani pembepilan 1Roll untuk harga bisa lewat chat terlebih dahulu..
- Menjual berbagai ukuran kabel merk JEMBO
Untuk Cara Pesan untuk 1 berarti hitunganya 1meter
Identification of Cores :
| Twin-Cores |
: |
Light-Blue, Black |
| Three-Cores |
: |
System I
Green with yellow stripe ( G/Y ), Blue, Brown
System O
Brown, Black, Grey |
| Four-Cores |
: |
System I
Green with yellow stripe ( G/Y ). Brown, Black, Grey
System O
Blue, Brown, Black, Grey |
| Five- Cores |
: |
System I
Green with yellow stripe ( G/Y), Blue, Brown, Black, Grey
System O
Blue, Brown, Black, Grey, Black |
| Above five cores |
: |
Black with white number
Other colours are available on request |

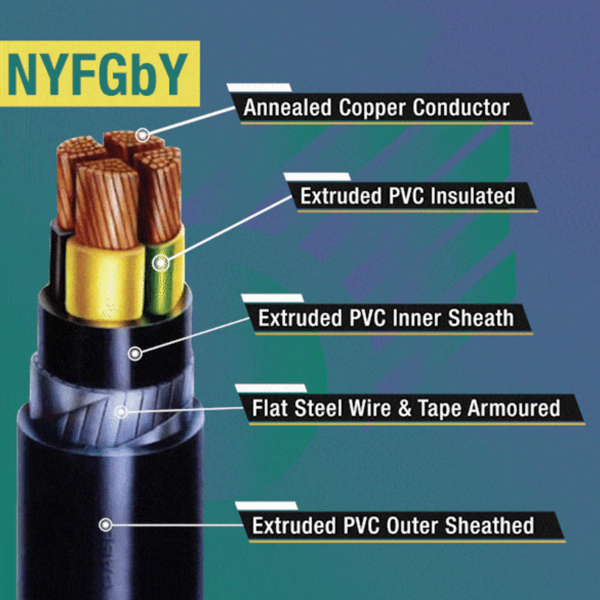

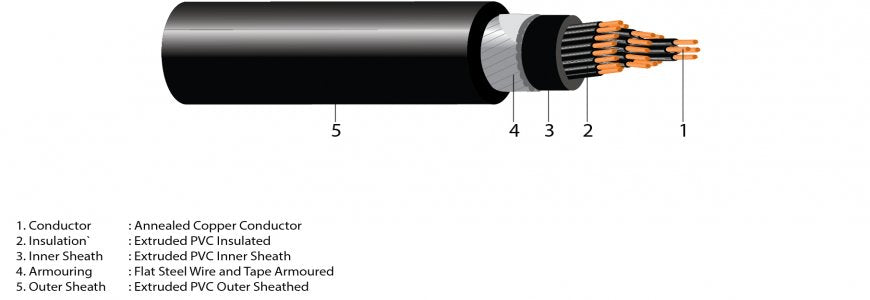

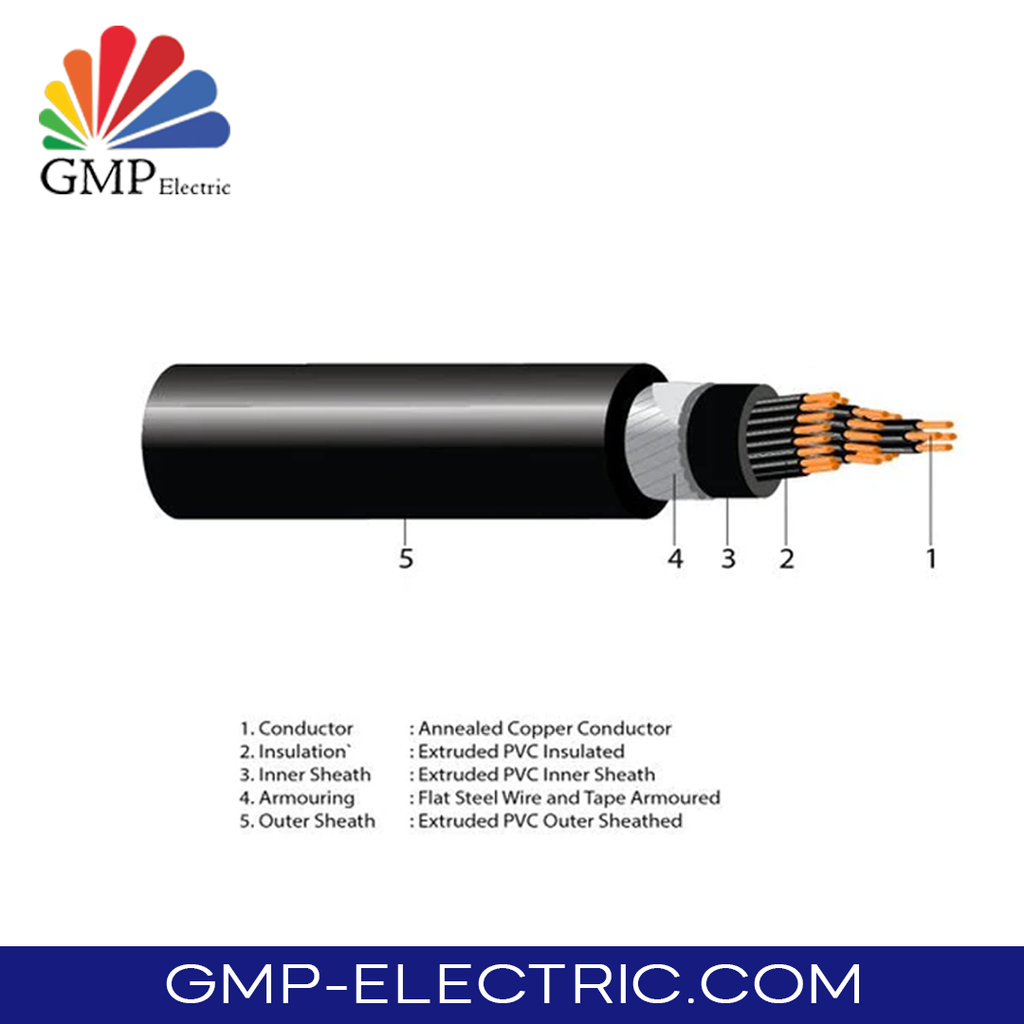

Construction :
1. Annealed Copper Conductor
2. Extruded PVC Insulated
3. Extruded PVC Inner Sheath
4. Flat steel wire and tape armoured
5. Extruded PVC Outer Sheated
Special Features on Request:
* Oil Resistance
* Flame Retardant Cat A, B, C
* Flame Retardant Non Category
* Nylon Coated
Symbol : NYFGbY or CU/PVC/SFA/PVC
| Size Ranged |
: |
5 x 4 ... 50mm²
4 x 6 ... 400mm²
3 x 10 ... 400mm²
2 x 10 ... 300mm² |
| Applicable Standard |
: |
Rated Voltage : 0.6/1 kV |
| Specification |
: |
SPLN 43-2 : 1994
SNI IEC 60502-1 2009
IEC 60502
Other Specification are available on request |
| Application |
: |
Indoor and outdoor
Installation direct burial
Preferably use where considerable mechanical stress must be envisaged |
