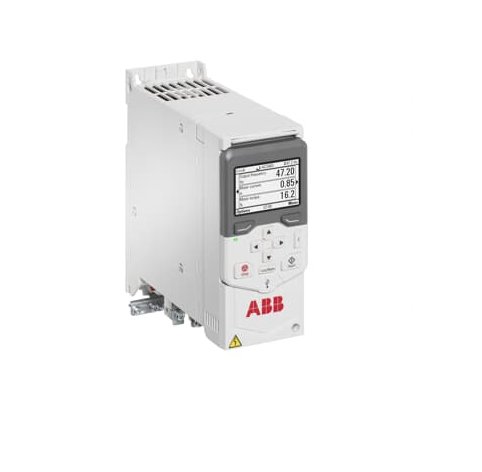

Features : - User friendly LCD control panel - Flexible Mounting alternatives : Screw or din Rail mounting , sideways or side by side - Integrated EMC Filter - Built-in Brake chopper as standard - Flash Drop Tool for faster and easier drive setup and commissioning for volume manufacturing and maintenance. Enable to upload and download Drive parameters. - PID Control - Coated Boards to protects the electronics from hazards including static discharge and airborne contaminates, including moisture. Voltage and Power Range : 3 Phase 380 to 480VAC +10%/-15%
Frequency : 48 to 63Hz Ambient Temperature : -10 to 50C Degree of Protection : IP20 Humidity : 5 to 95%, no condensation allowed Functional Safety : Safe torque off Braking : Built in brake chopper as standard
Nominal Rating : 7.2A (3kW) Light Duty Use : 6.8A (3kW) - 3P 380,400,415V Heavy Duty Use : 5.6A (2.2kW) - 3P 380,400,415V Max Output Current : 10.1A - 3P 380,400,415V
Light Duty Use : 6A (3hp) - 3P 440,460,480V Heavy Duty Use : 4A (2hp) - 3P 440,460,480V Max Output Current : 7.2A - 3P 440,460,480V
1 Analog input : Voltage (0(2)-10V), Current (0(4)-20mA), Potensiometer 10V +/- 1% 10KOhm. 6 Digital input : 12 to 24VDC , PNP and NPN, pulse train 0 to 16khz Input Impedence : 2.4 kohm 1 Auxilary Output : +24VDC, max 200mA 3 relay Output : NO+NC, 250VAC 5A/ 30VDC 0.5A 3 Analog Output : 1 Output frequency (0..10V) ,1 Output frequency (0..20mA) , 1 Output Current (0..20mA)
Dimension : 223 mm X 73 mm X 207.1 mm
