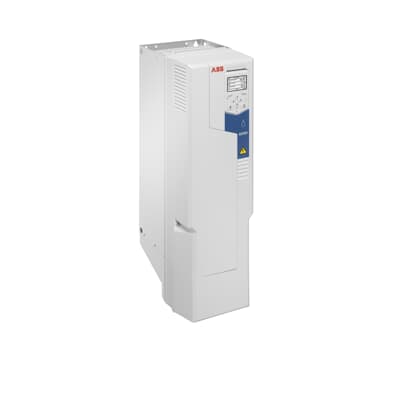

Inverter ABB 55KW 3P 380VAC ACQ580-01-106A-J430

Roll over image to zoom in

Inverter ABB 55KW 3P 380VAC ACQ580-01-106A-J430

Name: Inverter ABB 55KW 3P 380VAC ACQ580-01-106A-J430
Brand: ABB
SKU: 0015657
Price: 50650000.0 IDR
Availability: OutOfStock

ABBSKU: 0015657

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Dimensions

Product Net Weight: 28.3 kg

62.391 lb

Product Net Depth / Length:

295 mm

11.614 in

Product Net Height:

732 mm

28.819 in

Product Net Width:

203 mm

7.992 in

Package Level 1 Depth / Length:

870 mm

34.25 in

Package Level 1 Height:

578 mm

22.76 in

Package Level 1 Width:

325 mm

12.80 in

Package Level 1 Units:

1 case

Technical

Number of Phases:

Degree of Protection:

IP21

Enclosure Type NEMA:

Type1

Altitude:

4000 m

Operating Humidity (RH_amb):

5 ... 95

Power Factor:

0.98

Sound dB (A):

63 dB(A)

Multiple Battery Information:

Lithium Coin; CR2032; 220 mAh; 3 V; 1 pc; 3 g

Frequency (f):

47.5 ... 63 Hz

Frame Size:

Input Voltage (U_in):

380 ... 480 V

Mounting Type:

Wall-mounted

Communication Protocol:

CAN

DeviceNet

EtherNet/IP

MODBUS

Other Bus Systems

PROFIBUS

PROFINET IO

TCP/IP

Number of Hardware Interfaces:

Industrial Ethernet 0

Other 2

Parallel 2

PROFINET 0

RS-232 0

RS-422 0

RS-485 1

Serial TTY 0

USB 1

Includes:

Control unit

PC connection

Analog Inputs:

Analog Outputs:

Number of Digital In/Outputs:

6 / 3

Output Current, Heavy-Duty Use (I_HD):

87 A

Output Current, Light-Overload Use (I_LD):

100 A

Output Current, Normal Use (I_n):

106 A

Output Power, Heavy-Duty Use (P_HD):

45 kW

Output Power, Light-Overload Use (P_LD):

55 kW

Output Power, Normal Use (P_n):

55 kW

Apparent Power Output:

73 kV·A

Efficiency Level:

IE2

Standby Loss:

24 W
