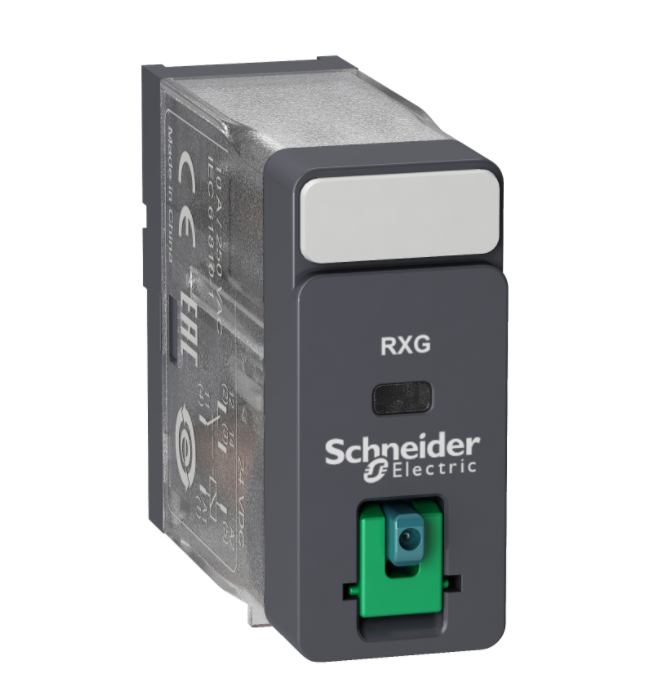

Relay Schneider RXG21BD 24VDC, 2 C/O 5A 250VAC

Harmony Relay

Interface relay

Plug-in relay

RXG

2 C/O

Without

Silver alloy (AgSnO2In2O3)

100 mOhm

5 A at -40…55 °C

5 A at 30 V (DC) conforming to UL
5 A at 30 V (DC) conforming to IEC
5 A at 250 V (AC) conforming to IEC
5 A at 250 V (AC) conforming to UL

250 V AC
30 V DC

5 A at 250 V AC

1250 VA

50 mW at 10 mA, 5 V DC

<= 1800 cycles/hour under load
<= 18000 cycles/hour no-load

20 %

10000000 cycles

100000 cycles for NO resistive load at 55 °C
100000 cycles for NC resistive load at 55 °C

250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL

6 kV 1.2/50 µs

1000 V AC between contacts with micro disconnection
5000 V AC between coil and contact with reinforced insulation
3000 V AC between poles with basic insulation

1100 Ohm +/- 10 %

1000 MOhm at 500 V DC

Level A group mounting

Any position

>= 0.1 Uc DC

Class F

20 ms

20 ms

24 V DC

B10d = 100000

Standard

Lockable test button

Flag

0.8 N.m

0.02 kg

Complete product

3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation
5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation

IP40

20 gn in operation
100 gn not in operation

RT I

UL 508
IEC 61810-1
CSA C22.2 No 14

CSA
UL
EAC
CE

2

III

-40…85 °C

-40…70 °C

10…85 %

20.200 g

35.500 mm

130 mm

290 mm
