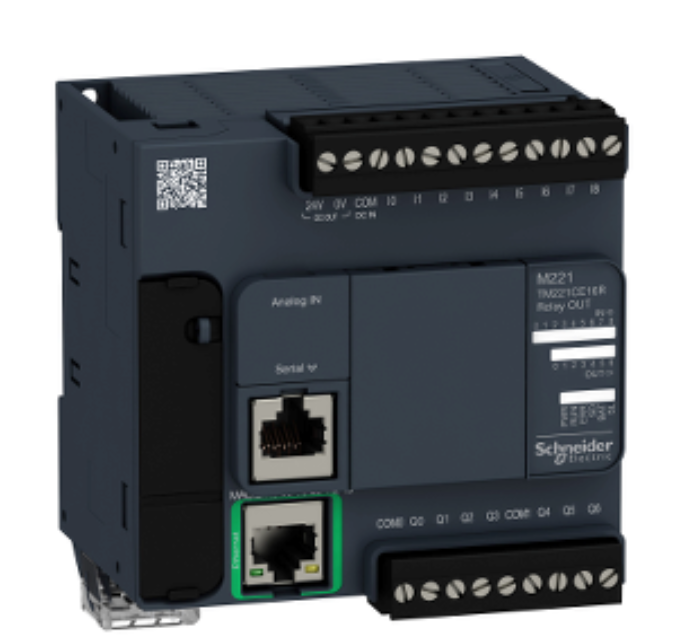

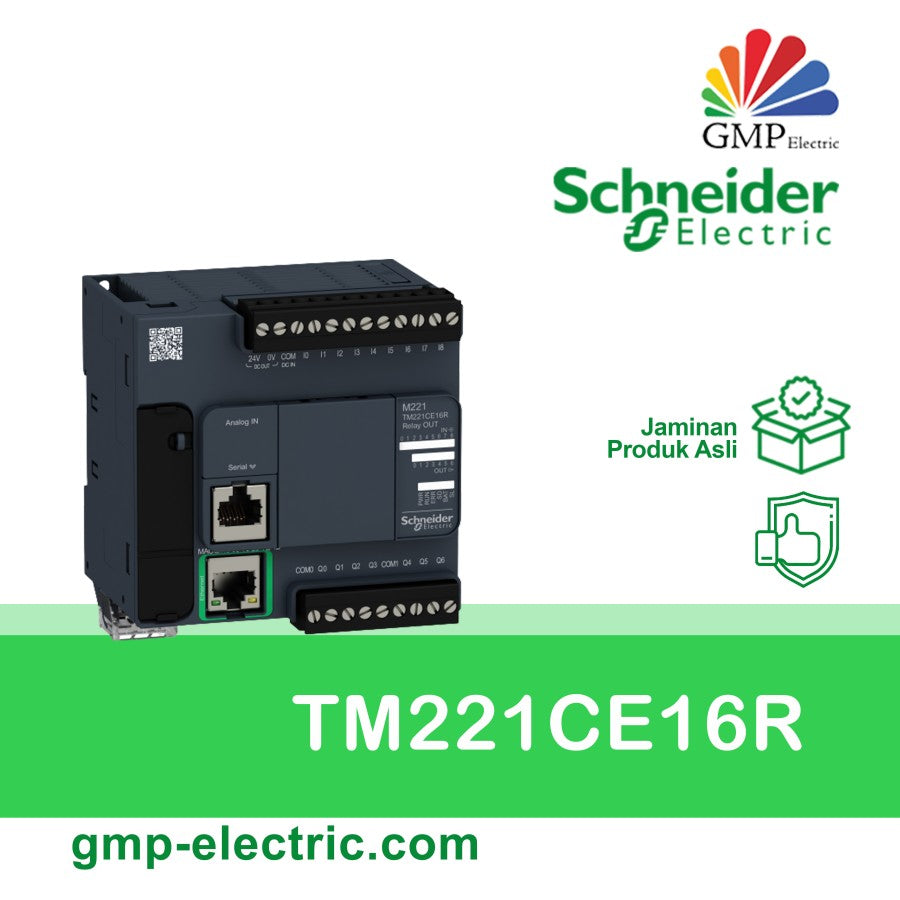

Programmable Logic Controller (PLC) Schneider M221 Series
Type : TM221CE16R
rated supply voltage : 100...240VAC
Max Power consumption : 35VA at 100...240V with no I/O expansion module
No of I/O = 24
Logic Input : 9 input sink/source 24VDC
(incld 4 High Speed Input)
Logic Output : 7 Relay Output 5...250VAC/DC, 2A
Analog Input : 2 Analog input ( 0...10V)
Ethernet RJ45 : 1 Port (RJ45) 10BASE-T/100BASE-TX
Serial Link : 1 Port (RJ45)
USB port with mini B USB 2.0 connector : 1 Port
Communication service : Modbus TCP server
Modbus TCP slave device
DHCP Client
Modbus TCP Client
Ethernet/IP adapter
Max expansion I/O : 7 for relay output, 7 for transistor output
Battery : BR2032 lithium non-rechargeable, battery life 4 years
Dimensi :103.6mm (height) x 95mm(wide) x 75.9mm(depth)
