Class 0.5 at 2 VA Class 1 at 2.5 VA Class 3 at 3.5 VA
[In] rated current
100 A
Complementary

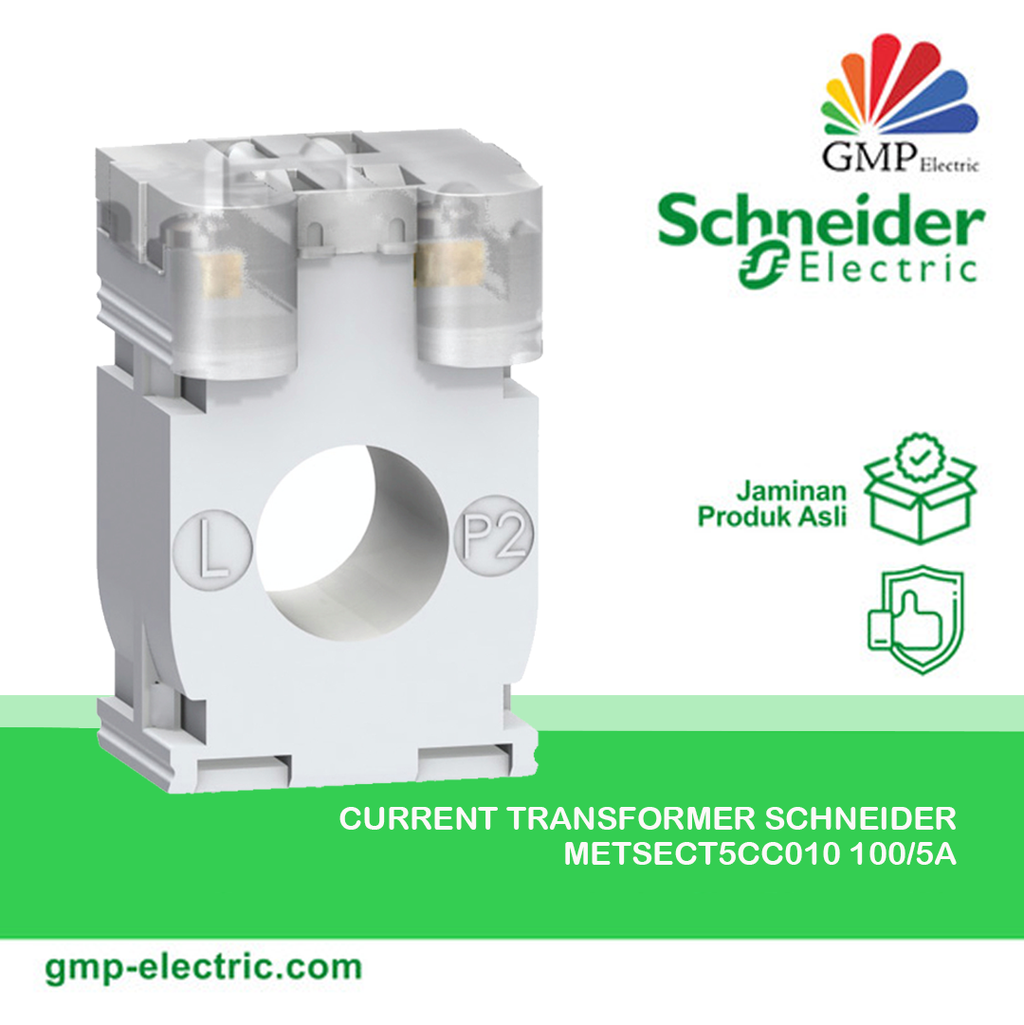

current transformer type
Tropicalised for cable
current transformer ratio
100/5
[Ith] conventional free air thermal current
6 kA
dynamic withstand current
2.5 Ith
Maximum safety factor
5
[Ue] rated operational voltage
< 720 V AC 50/60 Hz
[Ui] rated insulation voltage
3 kV
Mounting mode
By screws Clip-on
mounting support
Mounting plate DIN rail
Width
44 mm outside:
Height
65 mm outside:
Depth
30 mm frame: 37 mm total:
Diameter
21 mm
Net weight
0.19 kg
[Uimp] rated impulse withstand voltage
3 kV
Electrical insulation class
Class B
Cable outer diameter
21 mm
Sealing
With
Environment
standards
VDE 0414 IEC 61869-2
product certifications
EAC CE
IP degree of protection
IP20
Relative humidity
0…95 %
Ambient air temperature for operation
-25…60 °C
