H07VVH6-F 450/750v
FLAT FLEXIBLE CABLES
Application
Kabel ini berbentuk flat/pipih dan flexible yang dirancang khusus untuk instalasi daya ataupun kontrol pada crane, lift, hoist, drum reeling ,conveyor sistem. Dan cocok untuk dipasang di ruang kering, lembab, dan basah.

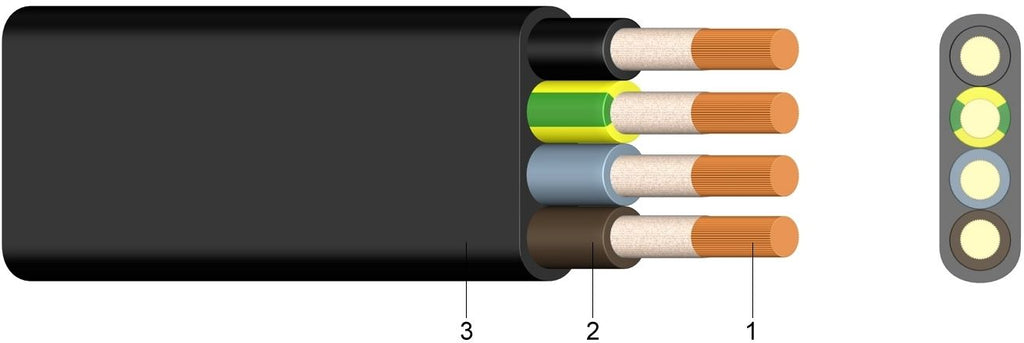

Construction
Stranded bare copper conductor,according to IEC-60228 Class 5
PVC Insulated
Cores Identification according to HD-308, up to 5 cores colour coding, 7 cores above black colour with white numerals and green-yellow protective earth conductor
PVC outer sheath, black colour, flame retardant to IEC 60332 - 1
Electrical and Technical Data
Working voltage Ue/U : max. 450/750 V
Test voltage : 2500 VAC
Insulation resistance : 20 MΩ x Km
Minimum Bending Radius : 10 x diameter cable
Temperature Range :
-25C to + 70C (Moved)
-40C to + 70C (Unmoved)
Brand : Delta / Top Cable
Type : H07VVH6-F
Size : (sesuai yang tercantum di judul etalase)
