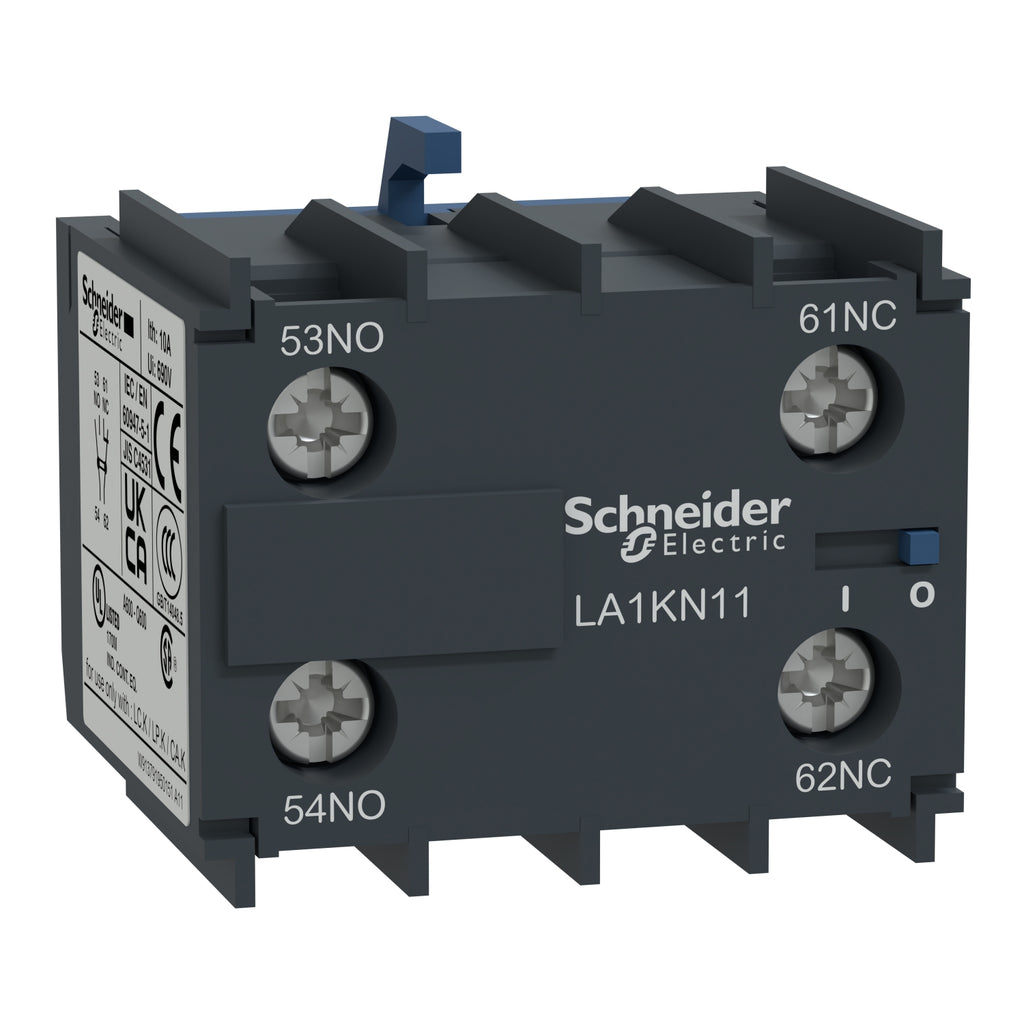

TeSys K LC1K TeSys K CA2K TeSys K CA3K TeSys K CA4K
Mounting location
Front
Pole contact composition
1 NO + 1 NC
Contacts operation
Instantaneous
[Ue] rated operational voltage
690 V AC 25...400 Hz
[Ui] rated insulation voltage
690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current
10 A (at 50 °C)
Standards
EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 JIS C8201-5-1
Product certifications
CB Scheme CCC UL CSA CE UKCA
Complementary
Irms rated making capacity
110 A at <= 690 V AC conforming to IEC 60947
Permissible short-time rating
80 A 1 s 60 A 500 ms 110 A 100 ms
Associated fuse rating
10 A gG at <= 690 V conforming to IEC 60947
Minimum switching current
5 mA
Minimum switching voltage
17 V
Non overlap distance
0.5 mm
Insulation resistance
> 10 MOhm
Connections - terminals
Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid
Tightening torque
1.3 N.m - with screwdriver Philips No 2 1.3 N.m - with screwdriver pozidriv No 2
Height
30 mm
Width
38 mm
Depth
35 mm
Net weight
0.045 kg
