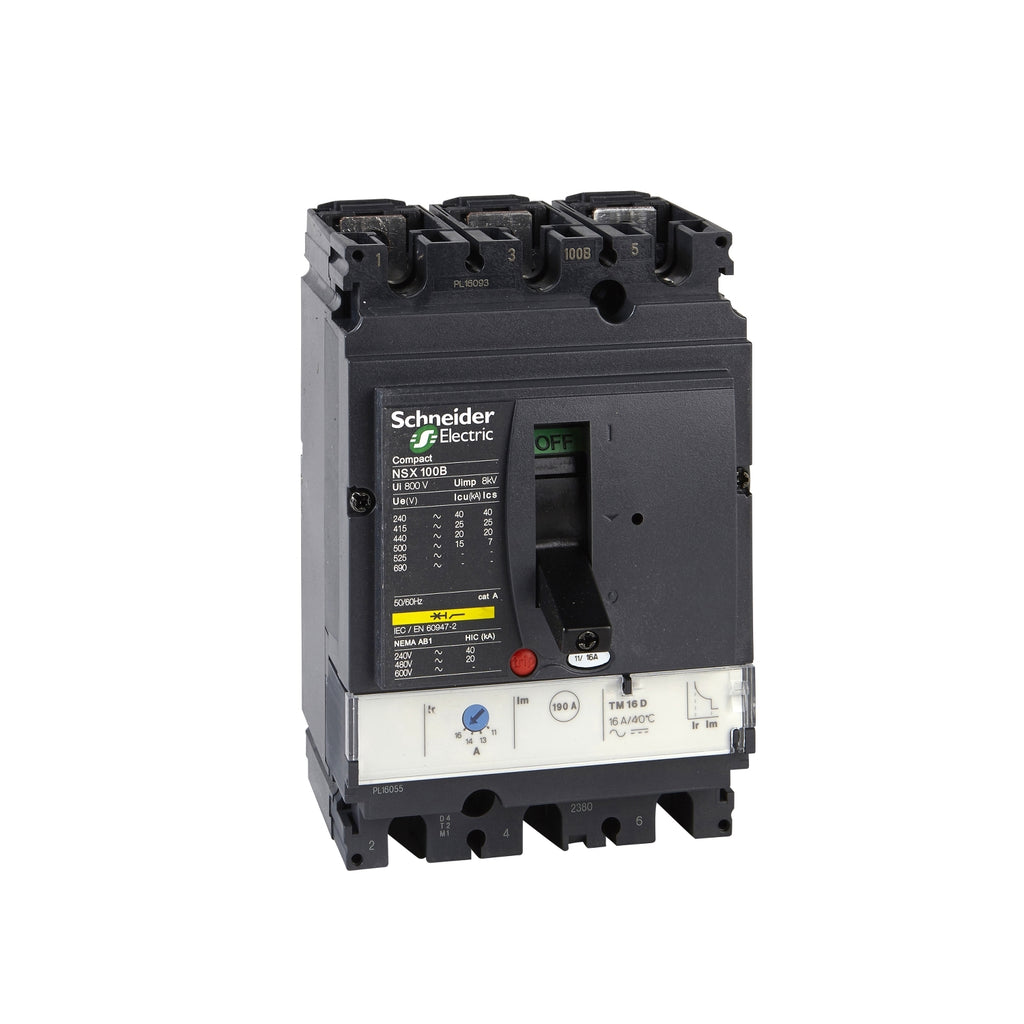

Activity
PPCCB
-
Weight (in Kg)
1.776
-
Net weight
2.05 kg
-
Product or Component Type
circuit breaker
-
Control Type
toggle
-
Trip Unit Protection Functions
LI
-
Trip Unit Technology
thermal-magnetic
-
Ambient air temperature for operation
-25-70 °C
-
Breaking Capacity
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
-
Mounting Mode
fixed
-
Mechanical Durability
50000 cycles
-
IK Degree Of Protection
IK07 conforming to IEC 62262
-
Network frequency
50/60 Hz
-
Trip Unit Rating
63-63 A at 40 °C
-
Earth-Leakage Protection
without
-
Breaking Capacity Code
H 70 kA 415 V AC
-
Downside Connection
front
-
Instantaneous Pick-up Adjustment Range
500 A
-
Instantaneous Pick-up Adjustment Type Li
fixed
-
Long Time Delay Adjustment Type
fixed
-
Long Time Pick-up Adjustment Range
0.7...1 x In
-
Long Time Pick-up Adjustment Type Lr
adjustable
-
Upside Connection
front
-
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
-
Product Name
ComPacT NSX new generation
-
Poles description
3P
-
protection_type
L : for overload protection (thermal)
I : for short-circuit protection (magnetic)
-
Standards
EN/IEC 60947
-
Product Certifications
CCC
EAC
Marine
-
Device Application
distribution
-
Range of Product
ComPacT NSX100...250 new generation
-
[Ics] Rated service breaking capacity
100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
-
Electrical Durability
50000 cycles at 440 V In/2
30000 cycles at 440 V In
20000 cycles at 690 V In/2
10000 cycles at 690 V In
-
Connection pitch
35 mm
-
Device short name
NSX100H
-
Network type
AC
-
Pollution degree
3 conforming to IEC 60664-1
-
Protected poles description
3D
-
Range
ComPacT new generation
-
Trip unit name
TM-D
-
[tr] Long-time delay adjustment range
120-400 s at 1.5 x In
15-15 s at 6 x Ir
-
[ui] Rated Insulation Voltage
800 V AC 50/60 Hz
-
Mounting position
horizontal and vertical
flat on the back
-
Power Dissipation Per Pole
8.61 W
-
Number of slots
5 slot(s)
-
Operating altitude
0...2000 m without derating
2000 m...5000 m with derating
-
Height
161 mm
-
Depth
86 mm
-
width
105 mm
-
[Uimp] rated impulse withstand voltage
8 kV
-
Ambient air temperature for storage
-50-85 °C
-
Compatibility code
NSX100
-
Electrical Shock Protection Class
class II
-
IP degree of protection
IP40 conforming to IEC 60529
-
Utilisation category
category A
-
Suitability for isolation
yes conforming to EN/IEC 60947-2
-
Overvoltage Category
class II
-
Brand
Schneider Electric
