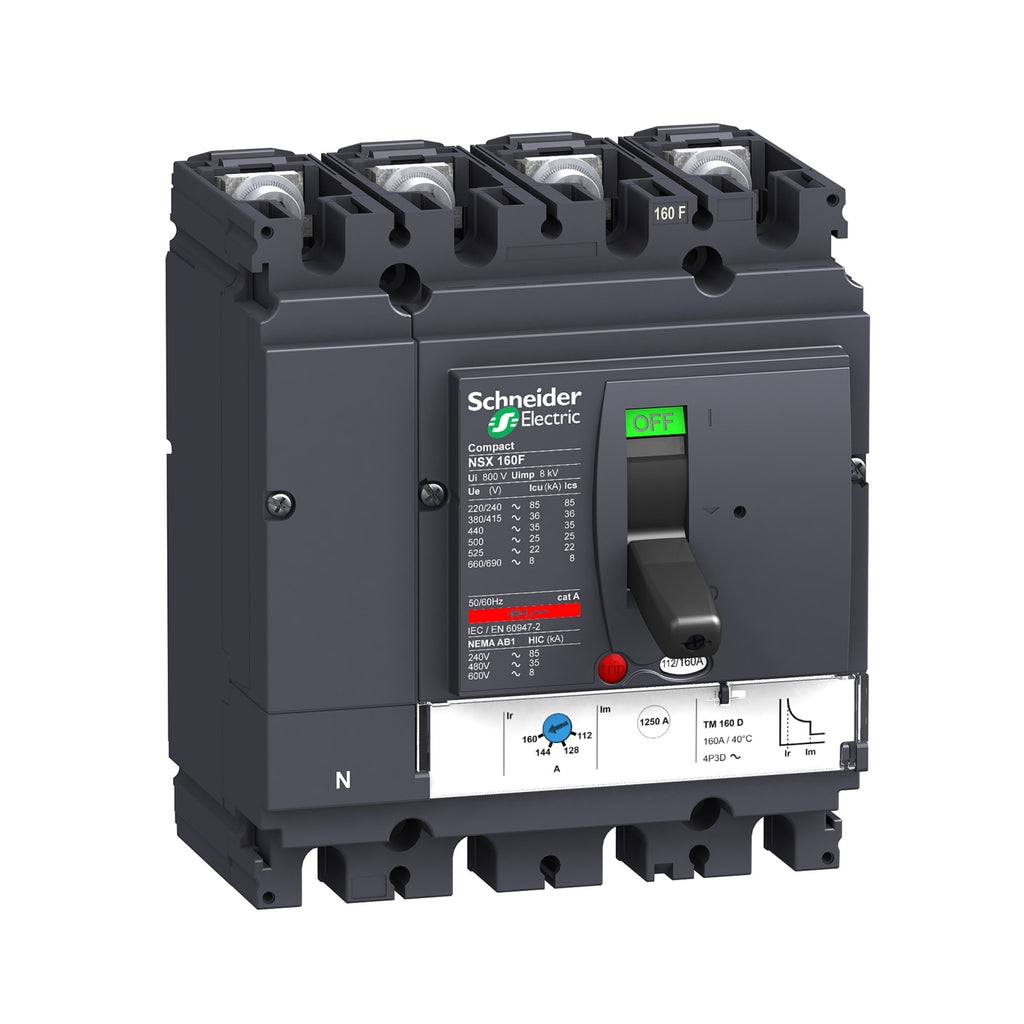

Circuit Breaker ComPacT NSX160N 4P
Product Overview:
-
Range: ComPacT New Generation
-
Product Name: ComPacT NSX New Generation
-
Device Short Name: NSX160N
-
Product Type: Circuit Breaker
-
Application: Distribution
-
Poles Description: 4P (4 poles)
-
Protected Poles Description: 3D (3 poles protected)
-
Neutral Position: Left
-
Rated Current [In]: 160 A at 40 °C
-
Rated Operational Voltage [Ue]: 690 V AC 50/60 Hz
-
Network Type: AC
-
Network Frequency: 50/60 Hz
-
Suitability for Isolation: Yes, conforming to EN/IEC 60947-2
-
Utilization Category: Category A
Short-Circuit Breaking Capacity:
- 90 kA Icu at 220/240 V AC
- 50 kA Icu at 380/415 V AC
- 50 kA Icu at 440 V AC
- 36 kA Icu at 500 V AC
- 35 kA Icu at 525 V AC
- 10 kA Icu at 660/690 V AC
- Performance Level: N 50 kA 415 V AC
Trip Unit:
-
Trip Unit Name: TM-D
-
Trip Unit Technology: Thermal-Magnetic
-
Trip Unit Protection Functions: LI (Overload Protection)
-
Control Type: Toggle
Electrical Characteristics:
-
Mechanical Durability: 40,000 cycles
-
Electrical Durability:
- 40,000 cycles at 440 V In/2
- 20,000 cycles at 440 V In
- 15,000 cycles at 690 V In/2
- 7,500 cycles at 690 V In
-
Power Dissipation per Pole: 13.95 W
Mounting and Connection:
-
Mounting Support: Backplate
-
Mounting Position: Horizontal and Vertical, flat on the back
-
Upside Connection: Front
-
Downside Connection: Front
-
Connection Pitch: 35 mm
Protection and Adjustment:
-
Protection Type:
- L: Overload Protection (Thermal)
- I: Short-Circuit Protection (Magnetic)
-
Trip Unit Rating: 160 A at 40 °C
-
Long-Time Pick-Up Adjustment Type Ir (Thermal Protection): Adjustable (0.7...1 x In)
-
Long-Time Protection Delay Adjustment Type tr: Fixed (120…400 s at 1.5 x In, 15 s at 6 x Ir)
-
Neutral Protection Settings: No protection (3D)
-
Instantaneous Protection Pick-Up Adjustment Type Ii: Fixed (1250 A)
Additional Protection and Dimensions:
-
Earth-Leakage Protection: Without
-
Number of Slots for Electrical Auxiliaries: 5 slots
-
Width (W): 140 mm
-
Height (H): 161 mm
-
Depth (D): 86 mm
-
Net Weight: 2.6 kg
Environmental Standards and Certifications:
-
Standards: EN/IEC 60947
-
Certifications: CCC, EAC, Marine
The ComPacT NSX160N 4P circuit breaker is designed for reliable performance in power distribution circuit breaking, meeting international standards and certifications.
