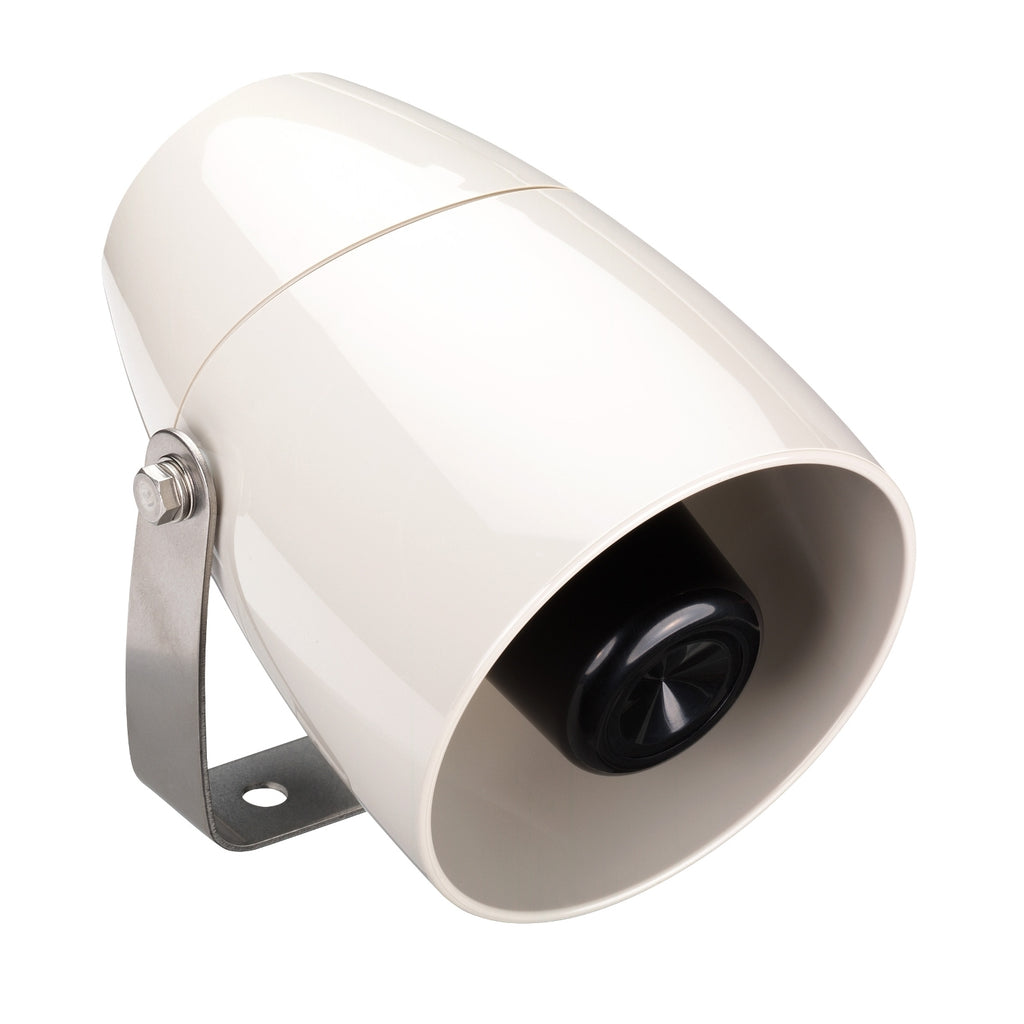

Buzzer Schneider XVS10MMW

Name: Buzzer Schneider XVS10MMW
Brand: Schneider
SKU: 0017527
Price: 4895500.0 IDR
Availability: OutOfStock

Save 33%

SchneiderSKU: 0017527

Share this product

Range of product	Harmony XVS
Product or component type	Siren
Device short name	XVS
Colour	White
Signalling type	2 tones siren
[Us] rated supply voltage	230 V AC
Noise level	106 dB (continuous or intermittent tone) at 1 m

Complementary
Material	PC: body
Net weight	1 kg
Marking	CE
[Uimp] rated impulse withstand voltage	4 kV
Current consumption	40 mA at 230 V
Clamping connection capacity	<= 1 x 1.5 mm²
Electrical connection	Cable: 6.5…8.5 mm
Width	114 mm
height	114 mm
Depth	153.2 mm

Environment
standards	IEC 60947-1 IEC 60947-5-1
Protective treatment	TC
Ambient air temperature for storage	-35…70 °C
Ambient air temperature for operation	-30…50 °C
Electrical shock protection class	Class II conforming to IEC 61140
IP degree of protection	IP53
