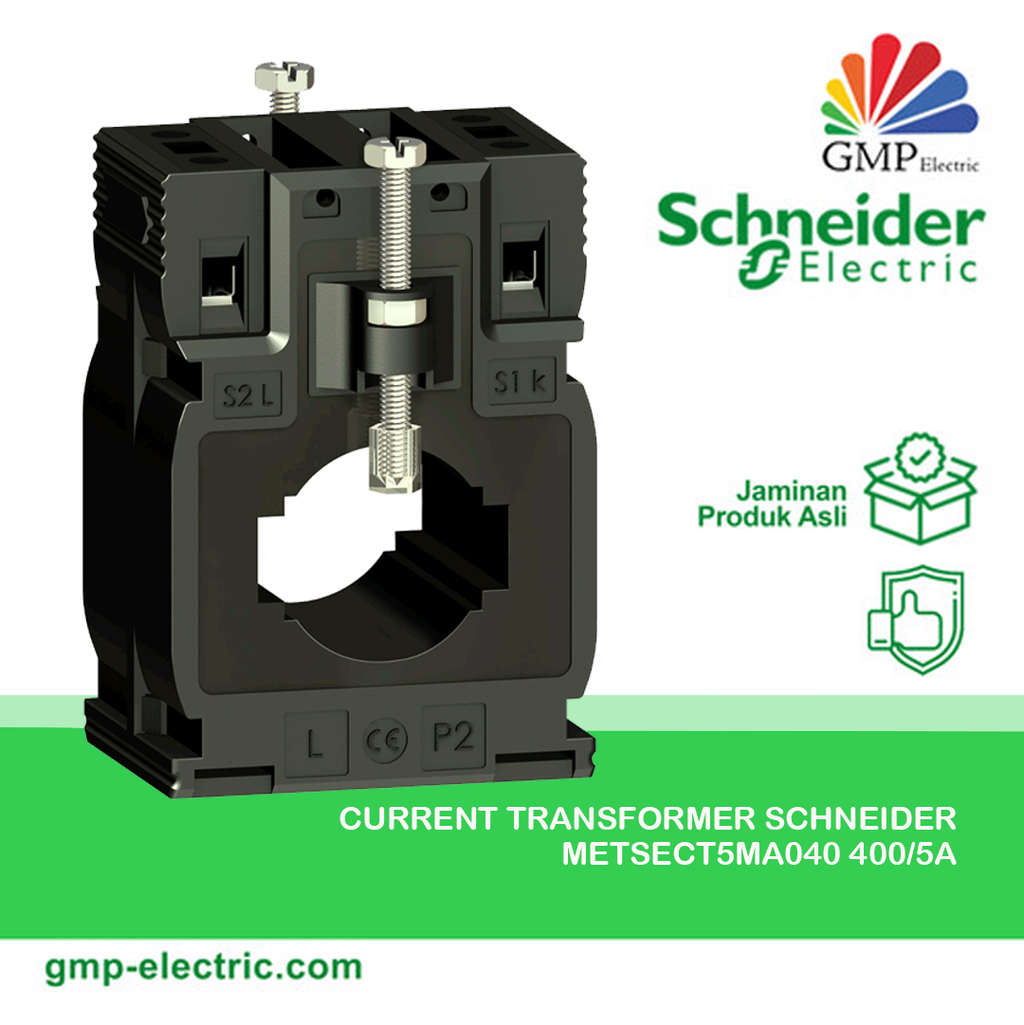

Current Transformer Schneider METSECT5MA040 400/5A

Roll over image to zoom in

Current Transformer Schneider METSECT5MA040 400/5A

Name: Current Transformer Schneider METSECT5MA040 400/5A
Brand: Schneider
SKU: 0012940
Price: 426000.0 IDR
Availability: OutOfStock

Save 36%

SchneiderSKU: 0012940

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range	PowerLogic
Product name	CT
Product or component type	Current transformer
Secondary current	5 A
Accuracy class	Class 0.5 at 10 VA Class 1 at 12 VA
[In] rated current	400 A

Complementary
current transformer type	Tropicalised for busbar and cable
current transformer ratio	400/5
[Ith] conventional free air thermal current	24 kA
dynamic withstand current	2.5 Ith
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
[Ui] rated insulation voltage	3 kV
Mounting mode	Clip-on By screws Insulated locking screw
mounting support	DIN rail Busbar Mounting plate
Width	56 mm outside:
Height	80 mm outside:
Depth	43 mm frame: 63 mm total:
Diameter	27 mm
Net weight	0.328 kg
[Uimp] rated impulse withstand voltage	3 kV
Electrical insulation class	Class B
Cable outer diameter	27 mm
Opening of bars	25.5 x 15.5 32.5 x 10.5
Sealing	Without

Environment
standards	VDE 0414 IEC 61869-2
product certifications	EAC CE
IP degree of protection	IP20
Relative humidity	0…95 %
Ambient air temperature for operation	-25…60 °C
