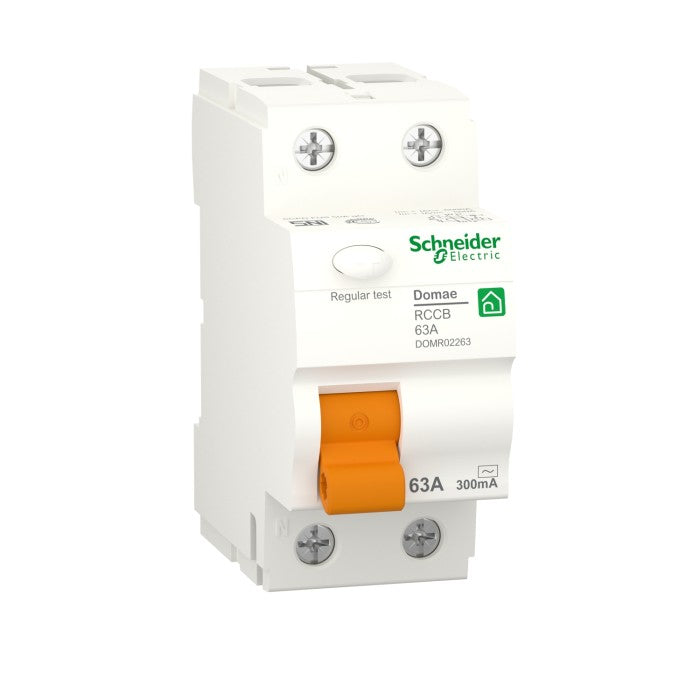

ELCB Schneider Domae 2P 63A 300mA DOMR02263

Name: ELCB Schneider Domae 2P 63A 300mA DOMR02263
Brand: SCHNEIDER
SKU: 0017126
Price: 550000.0 IDR
Availability: InStock

★★★★★(35)

168 Terjual

Save 17%

SCHNEIDERSKU: 0017126

Share this product

Range	Domae
Product or component type	Residual current circuit breaker (RCCB)
Device short name	RCCB
Device application	Protection
Poles description	2P
Earth-leakage protection class	Type AC
Suitability for isolation	Yes

Complementary
Neutral position	Left
[In] rated current	63 A
Network type	AC
Network frequency	50 Hz
[Ue] rated operational voltage	230 V AC 50 Hz
Earth-leakage sensitivity	300 mA
earth-leakage protection time delay	Instantaneous
Rated breaking and making capacity	3000 A
Rated conditional short-circuit current	Fuse: 6000 A
[Ui] rated insulation voltage	440 V AC 50 Hz
[Uimp] rated impulse withstand voltage	4 kV
Surge current	250 A
control type	Toggle
Local signalling	ON/OFF indication
Mounting mode	Clip-on
mounting support	DIN rail
Comb busbar and distribution block compatibility	YES
Connection pitch	18 mm
9 mm pitches	4
height	81 mm
Width	36 mm
Depth	76 mm
Embedding depth	44 mm
Net weight	180 kg
Colour	White
Mechanical durability	5000 cycles
Electrical durability	2000 cycles
Connections - terminals	Tunnel type terminals (top or bottom) 1…35 mm² rigid Tunnel type terminals (top or bottom) 1…25 mm² flexible
Wire stripping length	14 mm
Tightening torque	3.5 N.m

Environment
standards	IEC 61008-1
product certifications	SNI
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Pollution degree	2
Overvoltage category	III
Tropicalisation	2 conforming to IEC 60068-1
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-5…40 °C
Ambient air temperature for storage	-40…60 °C
