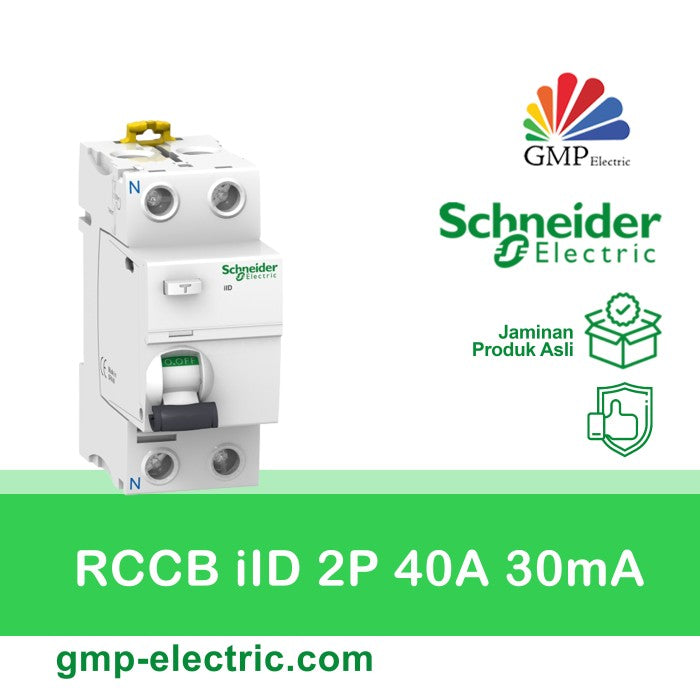

ELCB Schneider RCCB iID, Tipe AC 2P White 40A, 30mA A9R71240

Roll over image to zoom in

ELCB Schneider RCCB iID, Tipe AC 2P White 40A, 30mA A9R71240

Name: ELCB Schneider RCCB iID, Tipe AC 2P White 40A, 30mA A9R71240
Brand: Schneider
SKU: 0014915
Price: 501100.0 IDR
Availability: OutOfStock

Save 54%

SchneiderSKU: 0014915

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range	Acti 9
product name	Acti 9 iID
product or component type	Residual current circuit breaker (RCCB)
device short name	IID
poles description	2P
neutral position	Left
[In] rated current	40 A
network type	AC
earth-leakage sensitivity	30 mA
earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type AC

Complementary
device location in system	Outgoer
network frequency	50/60 Hz
[Ue] rated operational voltage	220...240 V AC 50/60 Hz
residual current tripping technology	Voltage independent
rated breaking and making capacity	Idm 1500 A Im 1500 A
rated conditional short-circuit current	10 kA
[Ui] rated insulation voltage	500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV
contact position indicator	Yes
control type	Toggle
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	4
height	91 mm
width	36 mm
depth	73.5 mm
net weight	0.21 kg
colour	White
mechanical durability	20000 cycles
electrical durability	AC-1: 15000 cycles
locking options description	Padlocking device
connections - terminals	Single terminal top or bottom 1��35 mm�� rigid Single terminal top or bottom 1��25 mm�� flexible Single terminal top or bottom 1��25 mm�� flexible with ferrule
wire stripping length	14 mm for top or bottom connection
tightening torque	3.5 N.m top or bottom

Environment
standards	EN/IEC 61008-1
product certifications	SNI
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
pollution degree	3
electromagnetic compatibility	8/20 ��s impulse withstand, 250 A conforming to EN/IEC 61008-1
ambient air temperature for operation	-5��60 ��C
ambient air temperature for storage	-40��85 ��C
