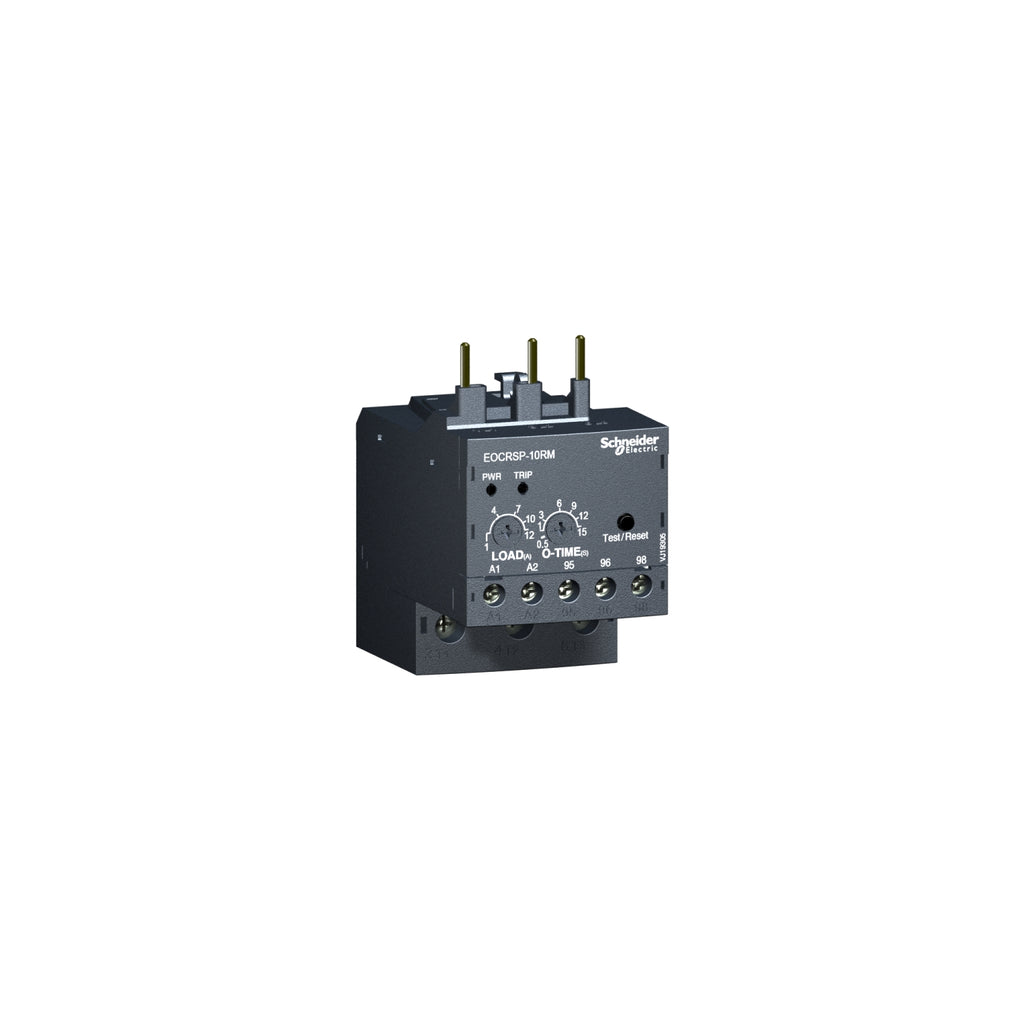

Overload, In > OC setting Sensitivity to phase loss Locked rotor for starting, In > 2 times OC setting
Product specific application
Overcurrent protection
Network type
AC
Network frequency
50...60 Hz
protection ajustment range
10…60 A
Tripping threshold
10...60 A
Complementary
[Us] rated supply voltage
220 V AC
Mounting support
35 mm DIN rail Panel
Contacts type and composition
1 NC + 1 NO (OL)
Short-circuit and overload protection
By 4 A gG fuse
[Ue] rated operational voltage
600 V AC 50...60 Hz for power circuit conforming to UL 690 V AC 50...60 Hz for power circuit conforming to CSA 690 V AC 50...60 Hz for power circuit conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-4-1
Reset
Manual reset Electrical 0…1 s by interruption of power supply
Time delay type
D-Time: 1...30 s O-Time: 0.5, 1...10 s
Display type
7 segments LED
power consumption per relay
3 W
Connections - terminals
Control circuit: lug-clamp 2 x 1…2.5 mm²flexible without cable end - M3.5 Control circuit: cable 2 x 1…2.5 mm²flexible without cable end - M3.5 Control circuit: cable 2 x 1…2.5 mm²flexible with cable end - M3.5
Tightening torque
Control circuit: 1.7 N.m on lug-clamp, cable, 7 mm
height
70 mm
Width
56 mm
Depth
77.2 mm
Net weight
0.255 kg
Environment
standards
IEC 60947-4-1
IP degree of protection
IP20 conforming to IEC 60529
Ambient air temperature for operation
-20…60 °C conforming to IEC 60947-4-1
Ambient air temperature for storage
-30…80 °C
Operating altitude
2000 m
Fire resistance
650 °C conforming to IEC 60695-2-12 960 °C conforming to UL 94
Shock resistance
15 gn for 11 ms conforming to IEC 60068-2-7
Vibration resistance
4 gn on panel mounting conforming to IEC 60068-2-6 2 gn on 35 mm DIN rail conforming to IEC 60068-2-6
Dielectric strength
2 kV 50...60 Hz in between case and circuit conforming to IEC 60255-5 1 kV 50...60 Hz in between contact conforming to IEC 60255-5 2 kV 50...60 Hz in between circuit conforming to IEC 60255-5
Surge withstand
6 kV conforming to IEC 61000-4-5
Electromagnetic compatibility
Resistance to radiated electromagnetic fields: 10 V/m level 3 conforming to IEC 61000-4-3 Resistance to electrostatic discharge: 8 kV air, 6 kV contact conforming to IEC 61000-4-2 Resistance to fast transient: 2 kV conforming to IEC 61000-4-4 Conducted RF disturbances: 10 V conforming to EN 61000-4-6 Conducted RF disturbances: class A conforming to EN 55011
[Ith] conventional free air thermal current
5 A for control circuit
Permissible current
250 V, 5 A
