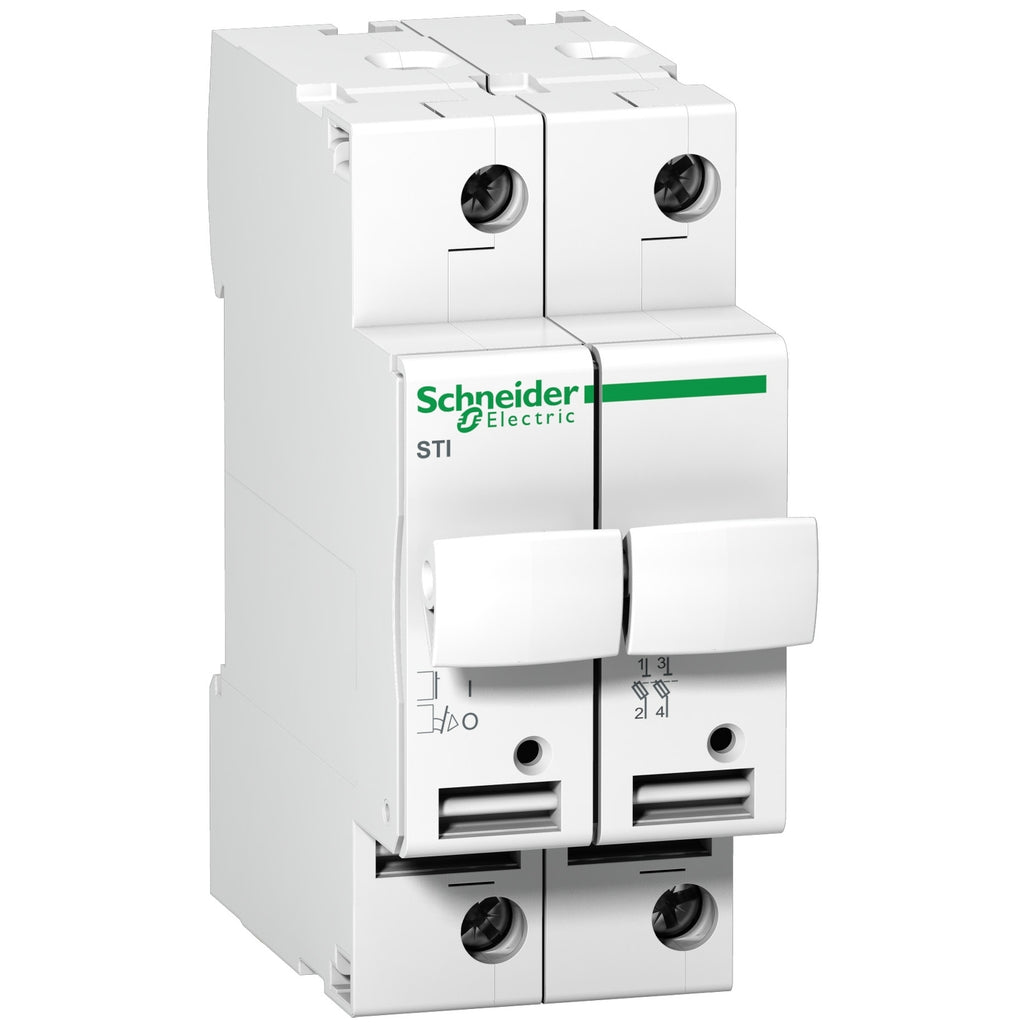

Fuse Schneider carier 10.3x38 mm 25A A9N15651

Name: Fuse Schneider carier 10.3x38 mm 25A A9N15651
Brand: Schneider
SKU: 0017575
Price: 219000.0 IDR
Availability: OutOfStock

Save 33%

SchneiderSKU: 0017575

Share this product

Complementary
[In] rated current	2 A 4 A 6 A 10 A 16 A 20 A 25 A
fuse curve	AM GG
Fuse size	10.3 x 38 mm
[Ue] rated operational voltage	500 V AC
[Ui] rated insulation voltage	500 V AC 50/60 Hz
Mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	4
height	81 mm
Width	36 mm
Depth	75 mm
Colour	White
Connections - terminals	Screw clamp terminals1 cable(s) 0.75…10 mm² rigid Screw clamp terminals1 cable(s) 0.5…6 mm² flexible Screw clamp terminals2 cable(s) 0.75…4 mm² rigid Screw clamp terminals2 cable(s) 0.5…6 mm² flexible
Wire stripping length	12 mm
Tightening torque	2 N.m

Environment
standards	IEC 60269-1/2 IEC EN 60947-3
IP degree of protection	IP20
Pollution degree	3
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-40…80 °C
