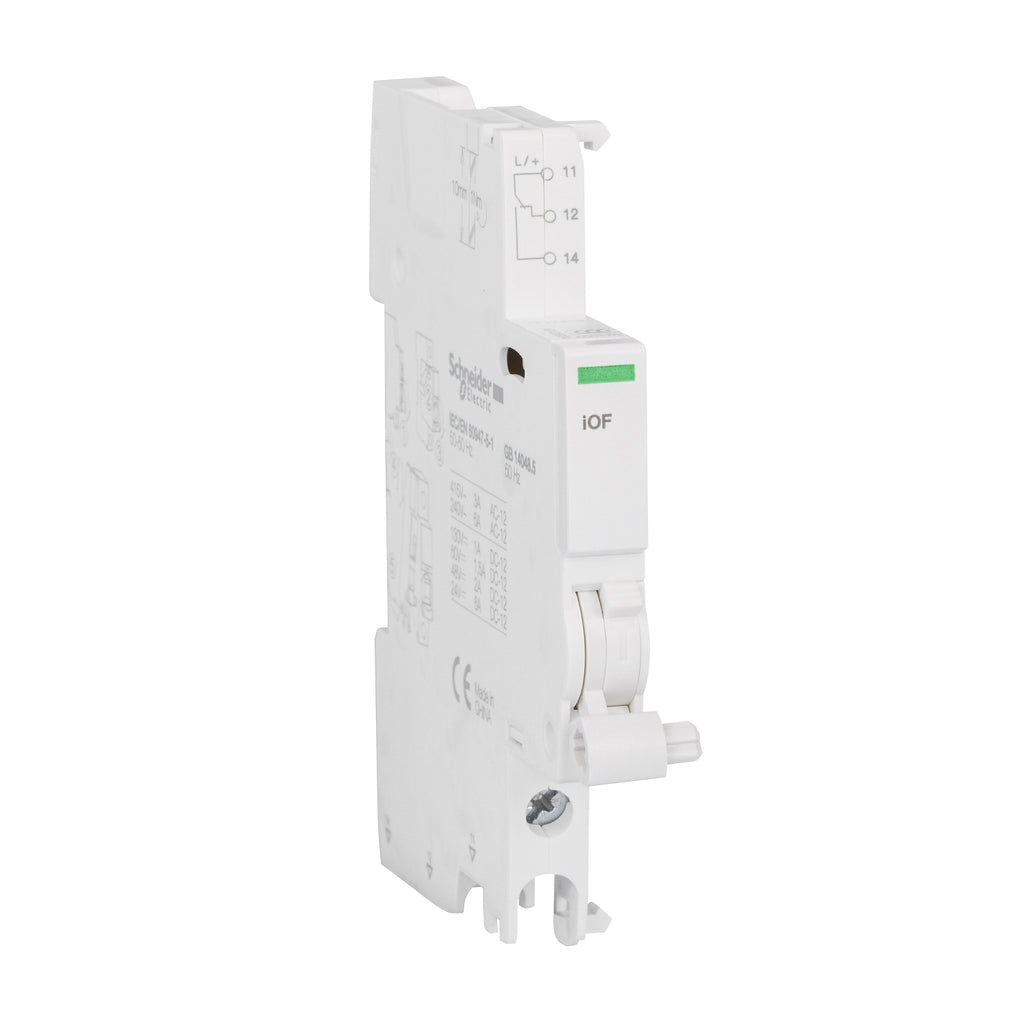

Kontak Bantu iC60 Schneider iOF open close aux 1C/O A9A26924

Roll over image to zoom in

Kontak Bantu iC60 Schneider iOF open close aux 1C/O A9A26924

Name: Kontak Bantu iC60 Schneider iOF open close aux 1C/O A9A26924
Brand: Schneider
SKU: 0016532
Price: 394500.0 IDR
Availability: OutOfStock

Save 45%

SchneiderSKU: 0016532

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range of product	Acti9
Product or component type	OC contact
Device short name	iOF
Signal contacts composition	1 C/O
[In] rated current	AC-12 6 A at 240 V, AC 50/60 Hz AC-12 3 A at 415 V, AC 50/60 Hz DC-12 2 A at 48 V, DC DC-12 1.5 A at 60 V, DC DC-12 1 A at 130 V, DC DC-12 6 A at 24 V, DC
9 mm pitches	1

Complementary
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
Mounting mode	Clip-on
mounting support	DIN rail
Comb busbar and distribution block compatibility	Top: YES
height	86 mm
Width	9 mm
Depth	73 mm
Net weight	32 g
Colour	White
Connections - terminals	Screw clamp terminal (bottom) 1 cable(s) 1…4 mm² - rigid Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - flexible Screw clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
Wire stripping length	10 mm
Tightening torque	1 N.m

Environment
standards	EN/IEC 60947-5-1
IP degree of protection	IP20 conforming to EN/IEC 60947-5-1
Pollution degree	3 conforming to EN/IEC 60947-5-1
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Ambient air temperature for operation	-35…70 °C
Ambient air temperature for storage	-40…85 °C
