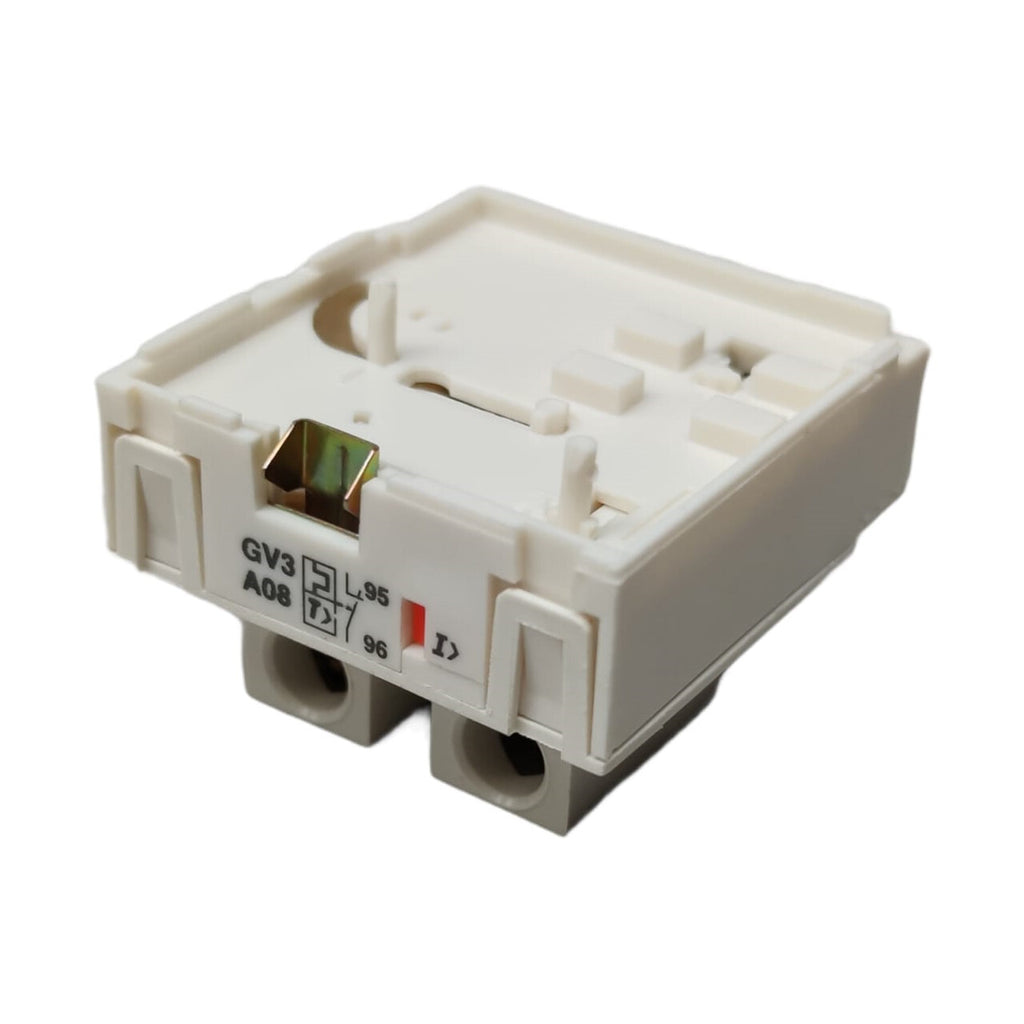

Kontak Bantu Samping Schneider GV3A08 U/GV3 1NC

Name: Kontak Bantu Samping Schneider GV3A08 U/GV3 1NC
Brand: Schneider
SKU: 0005232
Price: 356500.0 IDR
Availability: OutOfStock

Save 33%

SchneiderSKU: 0005232

Share this product

Main
Range	TeSys
Device short name	GV3A
Product or component type	Auxiliary contact block
Product compatibility	GV3ME
Range compatibility	TeSys GV3 GV3ME circuit breaker
Mounting location	Front side
Auxiliary contacts operation	Fault signal 1 NC
Pole contact composition	1 NC
Quantity per set	Set of 10

Complementary
[Ui] rated insulation voltage	600 V conforming to UL 508 690 V conforming to IEC 60947-1 600 V conforming to CSA C22.2 No 14
[Ue] rated operational voltage	48...690 V AC 24...220 V DC
[Ith] conventional free air thermal current	6 A
Mechanical durability	1000 cycles
Protection type	GB2CB... circuit breaker GG fuse 6 A
Rated operational power in VA	240 VA at 48 V AC-11 - electrical durability: 1000 cycles at 5 A 450 VA at 440 V AC-11 - electrical durability: 1000 cycles at 1 A 450 VA at 500 V AC-11 - electrical durability: 1000 cycles at 1 A 200 VA at 690 V AC-11 - electrical durability: 1000 cycles at 0.3 A 460 VA at 110…127 V AC-11 - electrical durability: 1000 cycles at 3.6 A 800 VA at 220…240 V AC-11 - electrical durability: 1000 cycles at 3.5 A 850 VA at 380…415 V AC-11 - electrical durability: 1000 cycles at 2.2 A
Rated operational power in W	180 W at 24 V DC-11 - electrical durability: 1000 cycles 180 W at 48 V DC-11 - electrical durability: 1000 cycles 135 W at 60 V DC-11 - electrical durability: 1000 cycles 105 W at 110 V DC-11 - electrical durability: 1000 cycles 90 W at 220 V DC-11 - electrical durability: 1000 cycles
Width	9 mm
