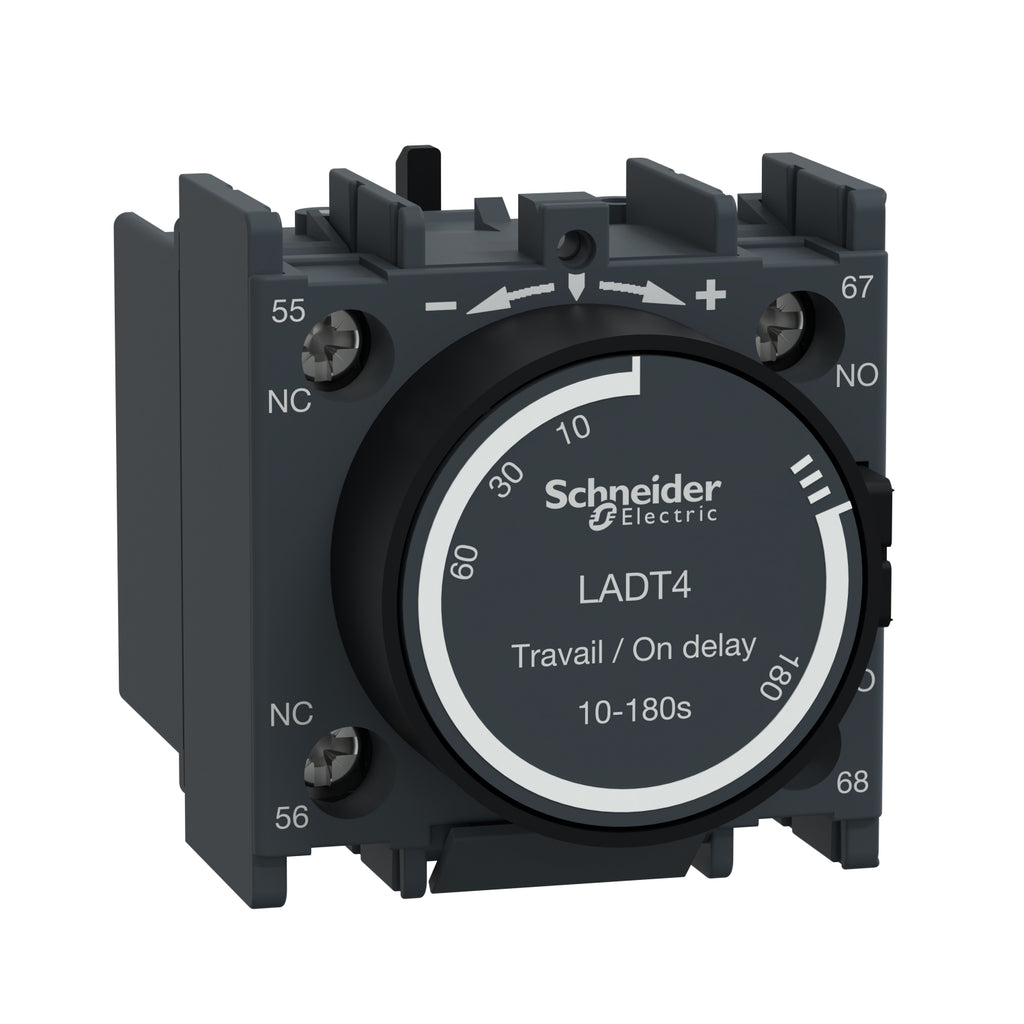

TeSys Deca CAD TeSys Deca LC1D TeSys F LC1F TeSys F CR1F
Mounting location
Front
Pole contact composition
1 NO + 1 NC
Contacts operation
Time delay
Timer type
On delay
Time delay range
10...180 s
[Ue] rated operational voltage
690 V AC 25...400 Hz
[Ie] rated operational current
6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
[Ui] rated insulation voltage
690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current
10 A (at 60 °C)
standards
EN/IEC 60947-5-1 GB/T 14048.5
product certifications
IECEE CB Scheme UL CSA CCC EAC UKCA
Complementary
Irms rated making capacity
140 A at <= 690 V AC conforming to IEC 60947-5-1 250 A at <= 690 V DC conforming to IEC 60947-5-1
Permissible short-time rating
100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
Protection type
GG fuse 10 A
Mechanical durability
5 Mcycles
Minimum switching current
5 mA
Minimum switching voltage
17 V
Non-overlap time
1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance
> 10 MOhm
Connections - terminals
Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1…2.5 mm²rigid Screw clamp terminals 2 cable(s) 1…2.5 mm²rigid Screw clamp terminals
Tightening torque
1.7 N.m - with screwdriver flat Ø 6 mm 1.7 N.m - with screwdriver Philips No 2 1.7 N.m - with screwdriver pozidriv No 2
height
48 mm
Width
44 mm
Depth
61 mm
Colour
Dark grey
Environment
Environmental characteristic
Normal environment
IP degree of protection
IP20 conforming to IEC 60529
Protective treatment
TH conforming to IEC 60068
Ambient air temperature for storage
-60…80 °C
Ambient air temperature for operation
-40…70 °C
Operating altitude
3000 m
