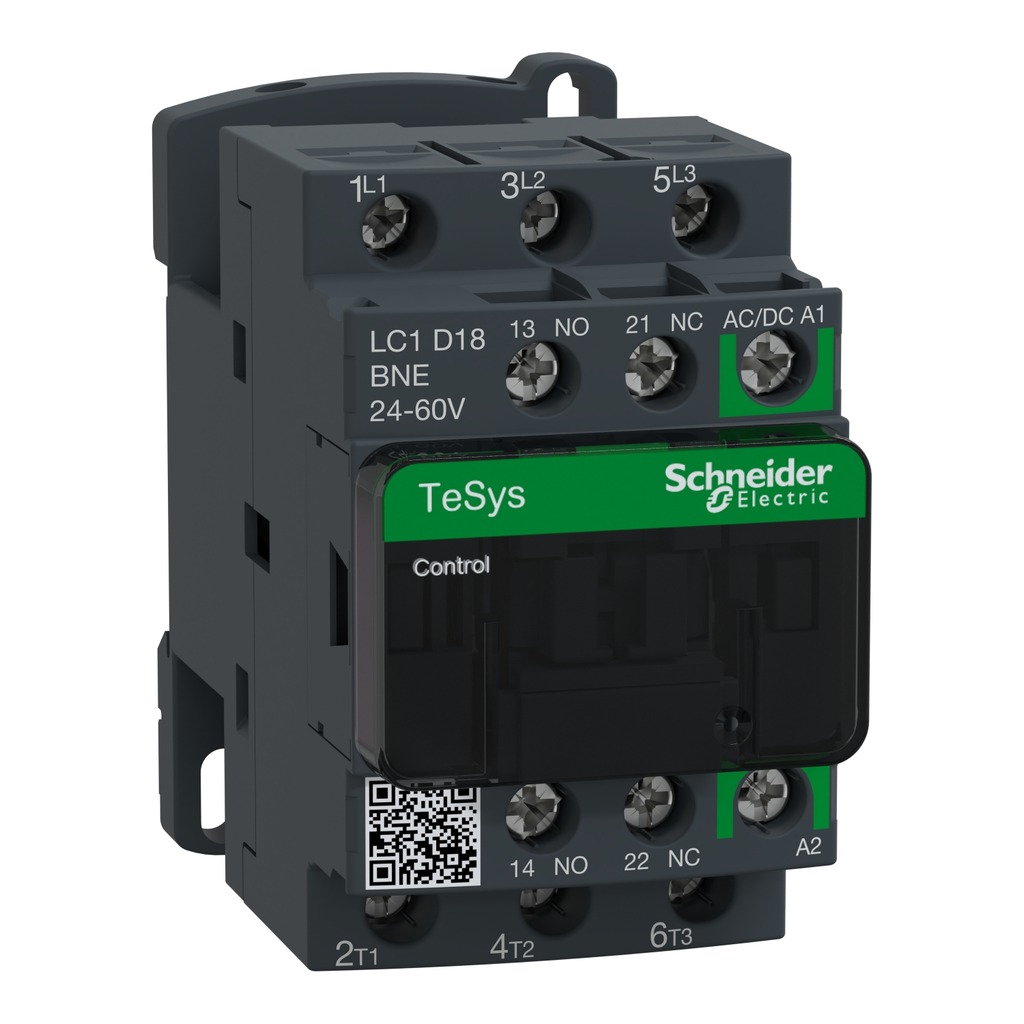

Magnetic Contactor Schneider LC1D18BNE
Type : LC1D18BNE
Voltase Coil : 24...60 VAC 50/60Hz
24...60 VDC
Utilisation Category : AC-3
AC-1
Poles Description : 3P (3 NO)
Rated Opeational Voltage : Power circuit: <= 690 V AC 25...400 Hz
Rated Operational Current : 32A ( at <60C) 440V AC AC-1
18A ( at <60C) 440V AC AC-3
Motor Power KW : 4 kW at 220...230 V AC 50/60 Hz (AC-3)
7.5 kW at 380...400 V AC 50/60 Hz (AC-3)
9 kW at 415...440 V AC 50/60 Hz (AC-3)
9 kW at 440V AC 50/60 Hz (AC-3)
10 kW at 500V AC 50/60 Hz (AC-3)
10 kW at 660...690V AC 50/60 Hz (AC-3)
Motor Power HP (UL/CSA) : 1 hp at 200/208 V AC 50/60 Hz for 1 phases motors
3 hp at 230/240 V AC 50/60 Hz for 1 phases motors
5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
5 hp at 230/240 V AC 50/60 Hz for 3 phases motors
10 hp at 460/480 V AC 50/60 Hz for 3 phases motors
15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Auxilary Contact : 1 NO + 1 NC
Overvoltage Category : III
Dimensi : 77mm (height) x 45mm (width) x 86mm (depth)
