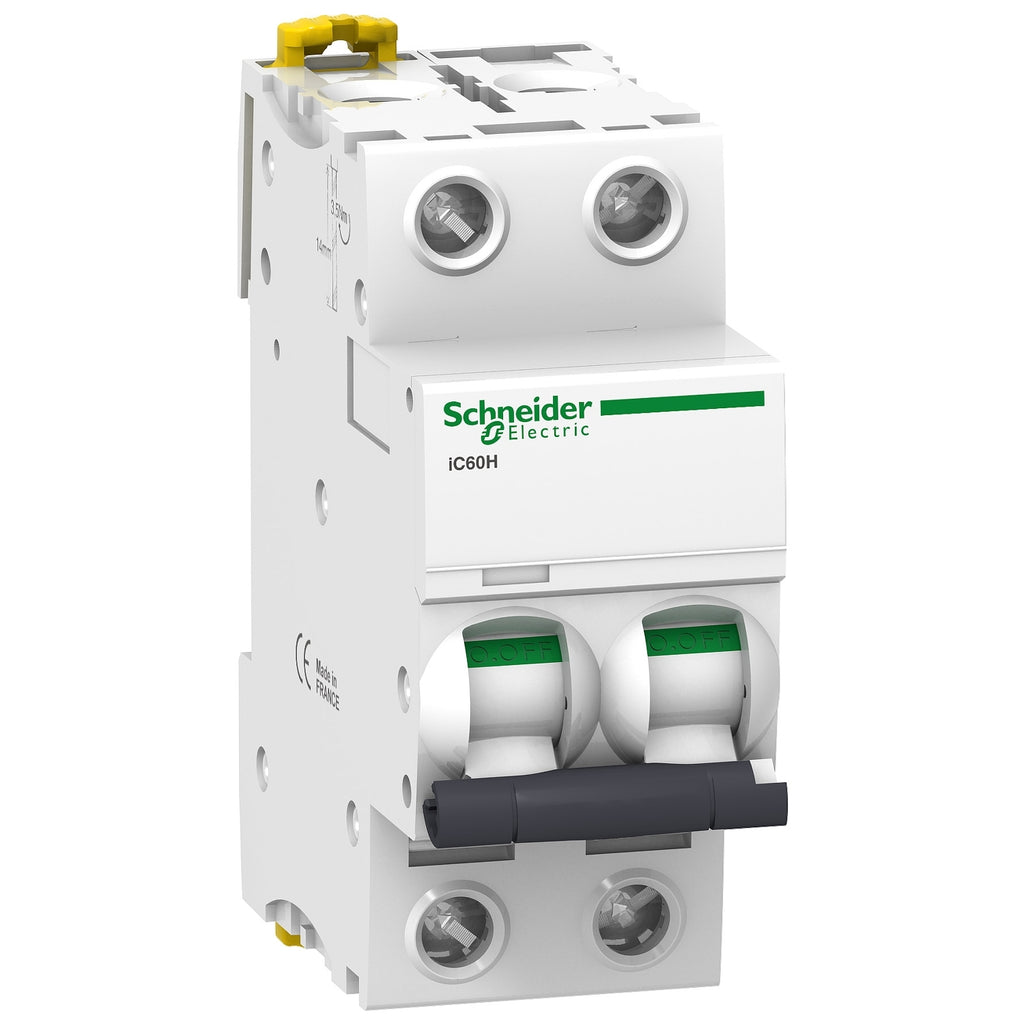

MCB Schneider iC60H, Kurva C 10kA 2P 25A White A9F84225

Roll over image to zoom in

MCB Schneider iC60H, Kurva C 10kA 2P 25A White A9F84225

Name: MCB Schneider iC60H, Kurva C 10kA 2P 25A White A9F84225
Brand: SCHNEIDER
SKU: 0011734
Price: 607000.0 IDR
Availability: InStock

★★★★★(31)

148 Terjual

Save 37%

SCHNEIDERSKU: 0011734

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
device application	Distribution
range	Acti 9
product name	Acti 9 iC60
product or component type	Miniature circuit-breaker
device short name	IC60H
poles description	2P
number of protected poles	2
[In] rated current	25 A
network type	AC DC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 42 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 42 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
utilisation category	Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2
suitability for isolation	Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2
standards	EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2

Complementary
network frequency	50/60 Hz
magnetic tripping limit	8 x In +/- 20 %
[Ics] rated service breaking capacity	15 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz 5 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz 15 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 5 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz 7500 A 75 % conforming to EN 60898-1 - 400 V AC 50/60 Hz 7500 A 75 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz 21 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz 21 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 15 kA 100 % conforming to IEC 60947-2 - 72...125 V DC 15 kA 100 % conforming to EN 60947-2 - 72...125 V DC
limitation class	3 conforming to EN 60898-1 3 conforming to IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2
contact position indicator	Yes
control type	Toggle
local signalling	Trip indicator
mounting mode	Fixed
mounting support	DIN rail
comb busbar and distribution block compatibility	Top or bottom: YES
9 mm pitches	4
height	85 mm
width	36 mm
depth	78.5 mm
net weight	0.25 kg
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles
connections - terminals	Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible
wire stripping length	14 mm for top or bottom connection
tightening torque	2 N.m top or bottom
earth-leakage protection	Separate block

Environment
IP degree of protection	IP20 conforming to IEC 60529 IP20 conforming to EN 60529
pollution degree	3 conforming to EN 60947-2 3 conforming to IEC 60947-2
overvoltage category	IV
tropicalisation	2 conforming to IEC 60068-1
relative humidity	95 % at 55 °C
operating altitude	0...2000 m
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-40…85 °C
