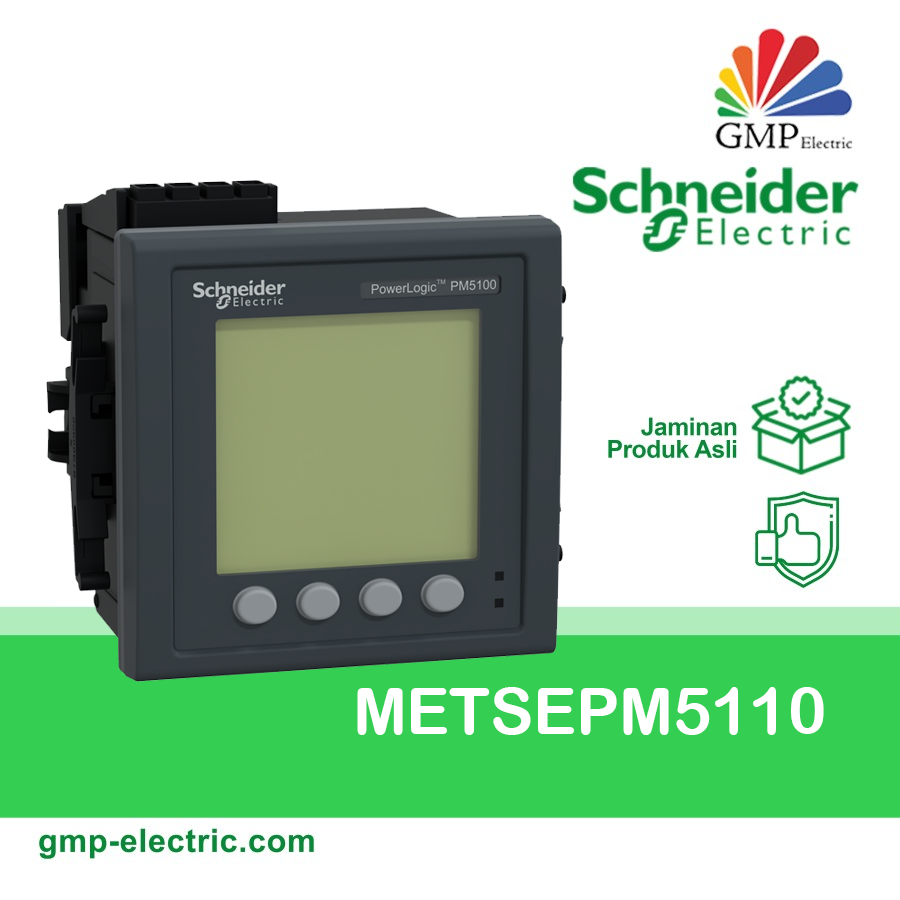

Power Meter Schneider METSEPM5110, Modbus RS-485, Acc.0.5s, Single Tariff, W96xH96mm

Roll over image to zoom in

Power Meter Schneider METSEPM5110, Modbus RS-485, Acc.0.5s, Single Tariff, W96xH96mm

Name: Power Meter Schneider METSEPM5110, Modbus RS-485, Acc.0.5s, Single Tariff, W96xH96mm
Brand: Schneider
SKU: 0013671
Price: 6127500.0 IDR
Availability: OutOfStock

Save 34%

SchneiderSKU: 0013671

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range	PowerLogic
product name	PowerLogic PM5000
device short name	PM5110
product or component type	Power meter

Complementary
power quality analysis	up to the 15th harmonic
device application	Power monitoring
type of measurement	Current Voltage Frequency Power factor Energy Active and reactive power
supply voltage	100...415 V AC 45...65 Hz 125...250 V DC
network frequency	50 Hz 60 Hz
[In] rated current	1 A 5 A
type of network	1P + N 3P + N 3P
maximum power consumption in VA	10 VA at 415 V
ride-through time	80 ms 120 V AC typical 100 ms 230 V AC typical 100 ms 415 V AC typical
display type	Backlit LCD
display resolution	128 x 128 pixels
sampling rate	64 samples/cycle
measurement current	10…9000 mA
analogue input type	Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm)
measurement voltage	35…690 V AC 45...65 Hz between phases 20…400 V AC 45...65 Hz between phase and neutral
frequency measurement range	45…65 Hz
number of inputs	0
measurement accuracy	Active energy +/- 0.5 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 05 Current +/- 0.5 % Voltage +/- 0.5 %
accuracy class	Class 0.5S active energy conforming to IEC 62053-22
number of outputs	1 digital
communication port protocol	Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V JBUS
communication port support	RS485
data recording	Time stamping Min/max of instantaneous values
connections - terminals	Voltage circuit: screw terminal block4 Control circuit: screw terminal block2 Current transformer: screw terminal block6 Input/output circuit: screw terminal block6 RS485 link: screw terminal block4
mounting mode	Flush-mounted
mounting support	Framework
standards	UL 61010-1 EN 50470-3 EN 50470-1 IEC 62053-22 IEC 60529 IEC 62053-24 IEC 61557-12
product certifications	CE conforming to IEC 61010-1 CULus conforming to UL 61010-1
width	96 mm
depth	72 mm
height	96 mm
net weight	380 g

Environment
electromagnetic compatibility	Limits for harmonic current emissions class A conforming to IEC 61000-3-2 Electrostatic discharge level 4 conforming to IEC 61000-4-2 Conducted RF disturbances level 3 conforming to IEC 61000-4-6 Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 Conducted and radiated emissions class B conforming to EN 55022
IP degree of protection	IP52 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
relative humidity	5…95 % at 50 °C
pollution degree	2
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
operating altitude	2000 m

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	550 g
Package 1 Height	11 cm
Package 1 width	12.6 cm
Package 1 Length	12.6 cm
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Weight	6.456 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
Unit Type of Package 3	P06
Number of Units in Package 3	96
Package 3 Weight	61.82 kg
Package 3 Height	50 cm
Package 3 width	80 cm
Package 3 Length	60 cm
