Description
| Contact block_Spesifikasi listrik_Arus /tegangan daya | 110VAC~/10A, 250VAC~/6A |
|---|---|
| LED block_Catu daya | 12-24VAC~ 50/60Hz, 12-24VDC
|
| LED Block_Konsumsi Arus | Maks. 20mA |
| Tingkat proteksi | IP52 |
| Berat_Lubang Pemasangan_Ø22/25 | Kurang lebih 22.5g |
| Berat_Housing | Kurang lebih 7g |
| Berat_Contact block_Tipe singular kontak A/B | Kurang lebih 11g |
| Berat_LED block_Tipe tegangan AC/DC | Kurang lebih 11g |
| Tipe Operasi | Push-lock, Turn-reset |

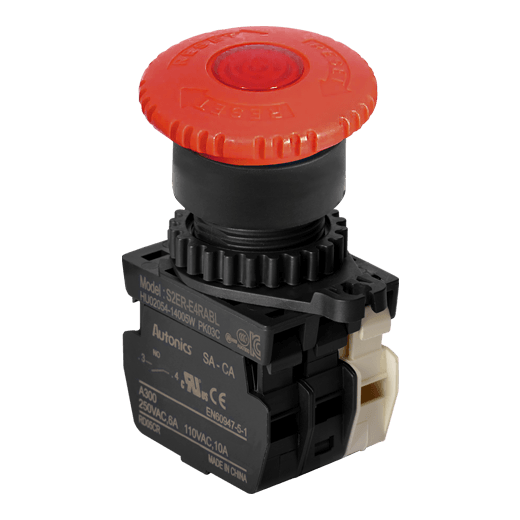

| Tipe tombol | D40(short head, illuminated) |
| Warna | Merah |
| Contact block | A Kontak: 1, B Kontak: 1 |
| Tipe contact block | Tipe singular |
| Lingkungan_kadar suhu | -15 hingga 55℃, ruang tertutup: -25 hingga 65℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, ruang tertutup: 35 ~ 85%RH |
※Environment resistance is rated no freezing or condensation.
