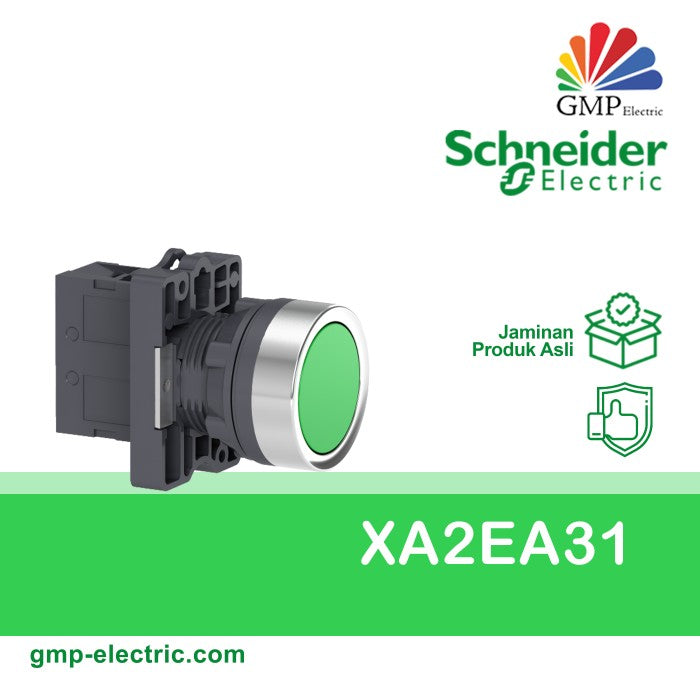

Push Button Schneider XA2EA31 22 mm Plastic Momentary Green 1NO

Easy Harmony XA2

Complete push-button

XA2

Plastic

Plastic

22 mm

1

TC

Any position

>= 30 x 40 mm (panel) - thickness: 1���5 mm

Fixing nut: 2���2.4 N.m

Round

spring return

Green flush

1 NO

Slow-break

1500000 cycles

0.8 N.m

10 A gL fuse conforming to IEC 60269-1

600 V conforming to IEC 60947-1

IEC 60947-1 6 kV

3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600

500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-4
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5

�� < 10exp(-8) at 24 V

30 mm

42 mm

54.7 mm

0.032 kg

-40���70 ��C

-25���55 ��C

Class I conforming to IEC 536

IP65 conforming to IEC 60529

IK03 conforming to IEC 60529

IEC 60947-5-1
GB 14048.1
GB 14048.5
IEC 60947-1

CCC
CE

10 gn (f= 40���500 Hz) conforming to IEC 60068-2-6

70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
