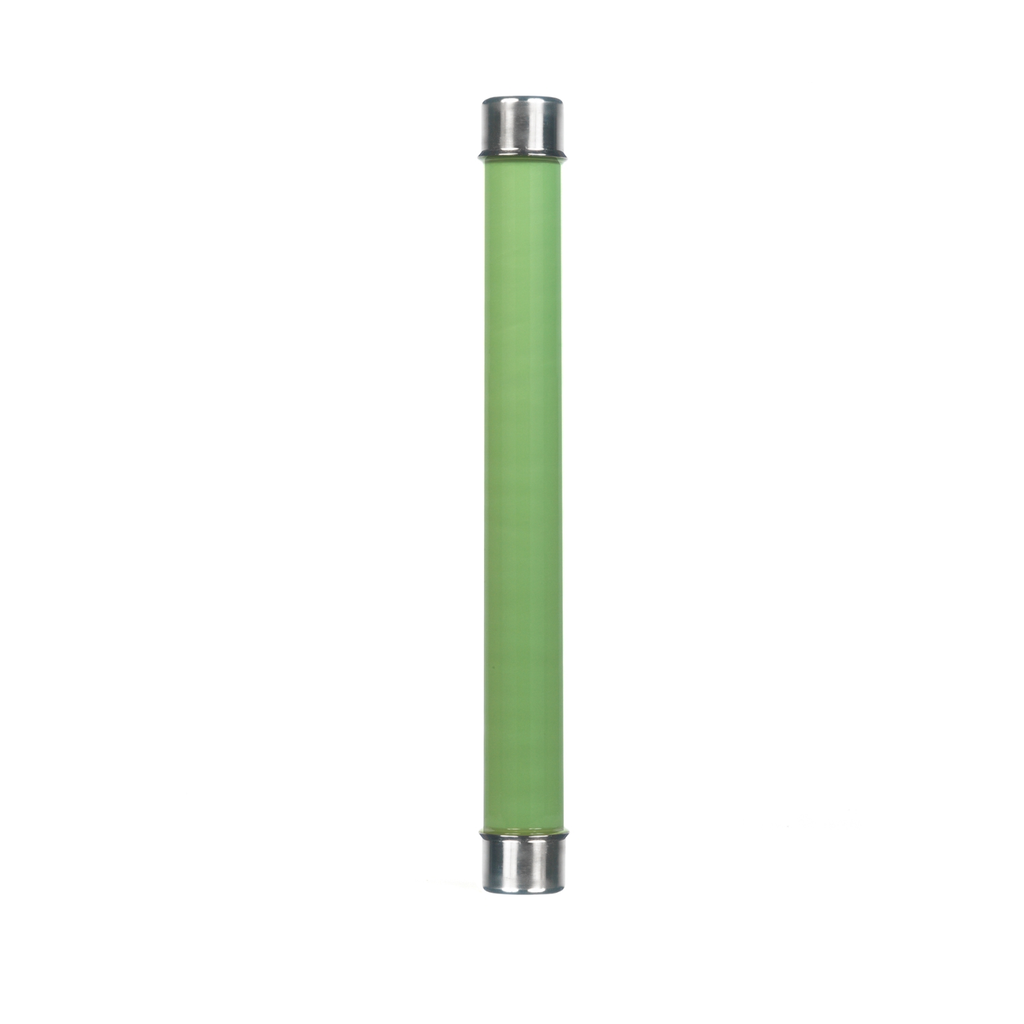

SoleFuse Schneider 757328 EK 12/24Kv 63A @ 3pcs

Name: SoleFuse Schneider 757328 EK 12/24Kv 63A @ 3pcs
Brand: SCHNEIDER
SKU: 0014540
Price: 4394000.0 IDR
Availability: InStock

★★★★★(17)

77 Terjual

Save 51%

SCHNEIDERSKU: 0014540

Share this product

Main
range of product	Solefuse
quality labels	ISO 14001 ISO 9001
standards	IEC 60282-1 IEC 60787 UTE C64200 UTE C64210
product or component type	Fuse
protection technology	Current limiter Thermal limiter

Complementary
[In] rated current	63 A
Rated voltage (Ur)	12 kV 24 kV
[Ue] rated operational voltage	10...24 kV
maximum discharge current	31.5 kA
braking current	315 A
average resistance	19.9 mOhm at 20 °C +/- 10 %
power dissipation in W	147 W
type of installation	Indoor
material	Glass fiber
product destination	Power transformer Capacitor Voltage transformer
condition of use	Cubicle In open air Fuse chamber
length	520 mm
net weight	2.3 kg
diameter	55 mm
