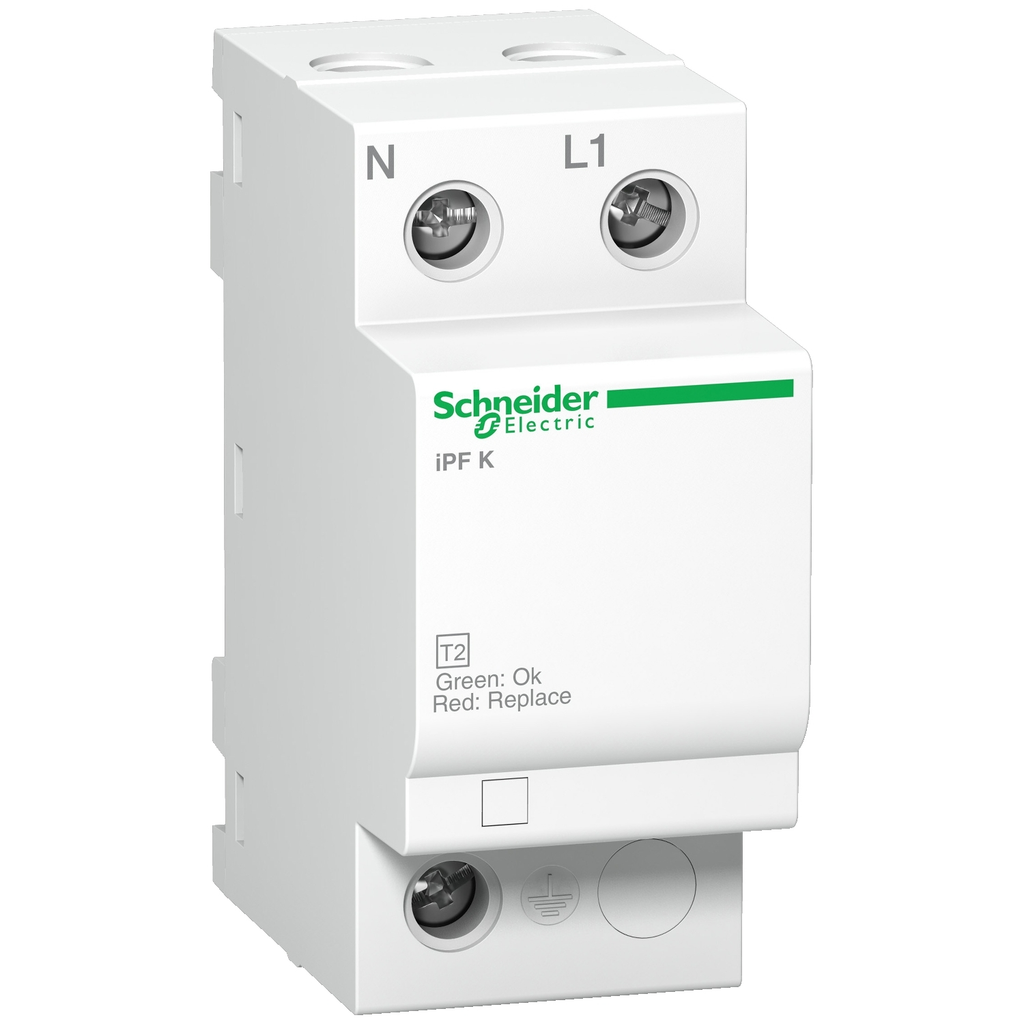

Surge Arrester Schneider PF20, 20kA 1P+N White A9L15692

Acti 9

Acti 9 iPF K

Surge arrester

IPF K

Distribution

1P + N

Without

Electrical distribution network

TN-S
TT

Type 2

MOV + GDT

230 V AC (+/- 10 %) at 50/60 Hz

Common mode: 5 kA (L/PE)
Common mode: 5 kA (N/PE)
Differential mode: 5 kA (L/N)

Common mode: 20 kA L/PE
Common mode: 20 kA N/PE
Differential mode: 20 kA L/N

Common mode: 340 V L/PE
Common mode: 260 V N/PE
Differential mode: 340 V L/N

Common mode <1.5 kV type 2 N/PE
Differential mode <1.1 kV type 2 L/N

337 V L/N 5 s withstand
442 V L/PE 5 s withstand
1200 V N/PE 200 ms withstand
1453 V L/PE 200 ms withstand

Associated circuit breaker iK60N 20 A curve C - Icu 6 kA
Associated fuse gG 25 A - Icu 25 kA

25 kA

0.25 A/250 V AC 50/60 Hz

Clip-on

DIN rail

4

81 mm

36 mm

69 mm

210 g

White (RAL 9003)

<= 25 ns

03 mA

Tunnel type terminal (top or bottom) 25 mm² rigid
Tunnel type terminal (top or bottom) 16 mm² flexible
Tunnel type terminal (top or bottom) 16 mm² flexible with ferrule

11 mm

3.5 N.m

IEC 61643-11:2011

CE
EAC

IP40 on front face: conforming to IEC 60529
IP20 on terminal: conforming to IEC 60529

IK03 conforming to IEC 62262

5…95 %

2000 m

-25…60 °C

-40…85 °C
