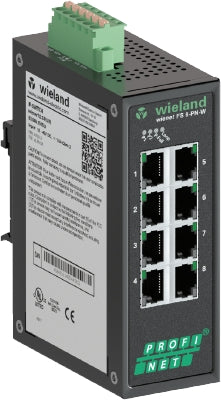

wieNET IP Switch, 8-Port Entry-Level Managed Fast Ethernet Switch with PROFINET support, Conformance Class B, 8 Ports 10/100 Mbps RJ45, IXM function enables fast deployment, GSDML-file, Management SNMP v1/v2/v3, Web-Browser, Standard MIB, Private MIB, Media Redundancy Protocol (MRP), Power Supply 8,4 V … 52,8 V DC, Operating temperature -40 bis 75 ° C (-40°F ... 167°F)
Commercial data
| Article number |
83.040.1510.0 |
| Article description |
IP switch WIENET FS 8-PN-W |
| EAN |
4049088435584 |
| Order Unit |
1 piece(s) |
| Country of origin |
CN |
| Customs tariff number |
85176200 |
Dimensions
| Length packed |
216 mm |
| Width packed |
165 mm |
| Height packed |
68 mm |
| Gross weight packed |
760 g |
| Net weight single part |
755 g |
| Volume packed |
2423.52 ccm |
Allgemein
| Mounting method |
DIN rail (top hat rail) |
| Degree of protection (IP) |
IP30 |
| Housing material |
Metal |
| Manageable |
yes |
| Ethernet |
yes |
| Power over Ethernet |
No |
| Fast Ethernet |
yes |
| Gigabit Ethernet |
No |
| Number of ports 10/100 Mbps RJ45 |
8 |
| supported protocols |
PROFINET |
| Diagnostic LEDs |
Power/Link status/Data/Data rate |
| 10 Gigabit Ethernet |
No |
| Number of ports 100 Mbps SC |
0 |
| Type of electric connection |
Push-In connection//true |
| Connector cross section |
0,25mm²...2,5mm² (AWG26...AWG12) |
| Wire strip length |
8 mm |
Technical data
| Voltage type |
DC |
| Min. operating temperature |
-40 °C |
| Max. operation temperature |
75 °C |
| Storage temperature / transport min. |
-40 °C |
| Storage temperature / transport max. |
85 °C |
| relative humidity min. |
10 % |
| relative humidity max. |
95 % |
| Net weight |
550 g |
| Redundant power supply |
2 power inputs |
Supply circuit
| Voltage type |
DC |
| Operating voltage min. |
12 V |
| Operating voltage max. |
48 V |
| Input current, max. |
1.5 A |
Dimensions
| Depth |
84 mm |
| Width |
43 mm |
| Height |
120 mm |
| Weight |
550 g |
Classification
| ECLASS 11 |
|
| ECLASS 8.1 |
19170106 |
| ETIM 7.0 |
EC000734 |
| ETIM 6.0 |
EC000734 |
| ETIM 5.0 |
EC000734 |
| ETIM 4.0 |
EC000734 |
Product compliance
| REACH-SVHC conformity status |
Compliant |
