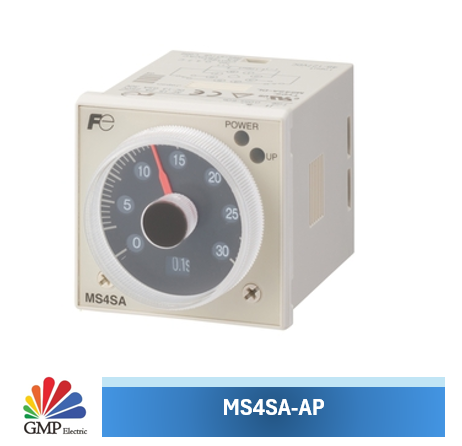

Timer Fuji MS4SA-AP 100-240VAC

Time Delay Relays

Brand : Fuji
Type : MS4SA-AP
Operation : On delay Operation
Input : 100-240VAC
Contact : Timed 2PDT 5A at 250V AC resistive load
Power Consumption : Approx. 10VA at AC, Approx. 1W at DC
Operating Temperature : -10 to +55C (No Icing)
Humidity : 35 to 85% (No Condensation)
Insulation Resistance : 100MΩ at 500 DC megger
Durability : Mechanical 20 million operation
                   Electrical 100.000 operations at 240VAC 5A resistive load
Standards : UL File No. E44592
                   TUV License No : R50006667 (MS4SA)

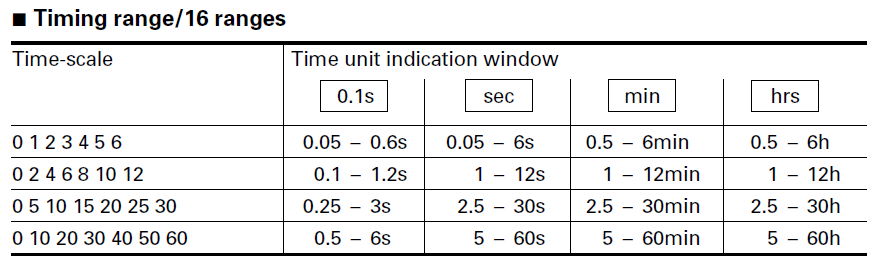

Timing Range :

Operation

When power is applied, the timed NO contacts make after the set time has elapsed
When power is removed, the contacts reset
