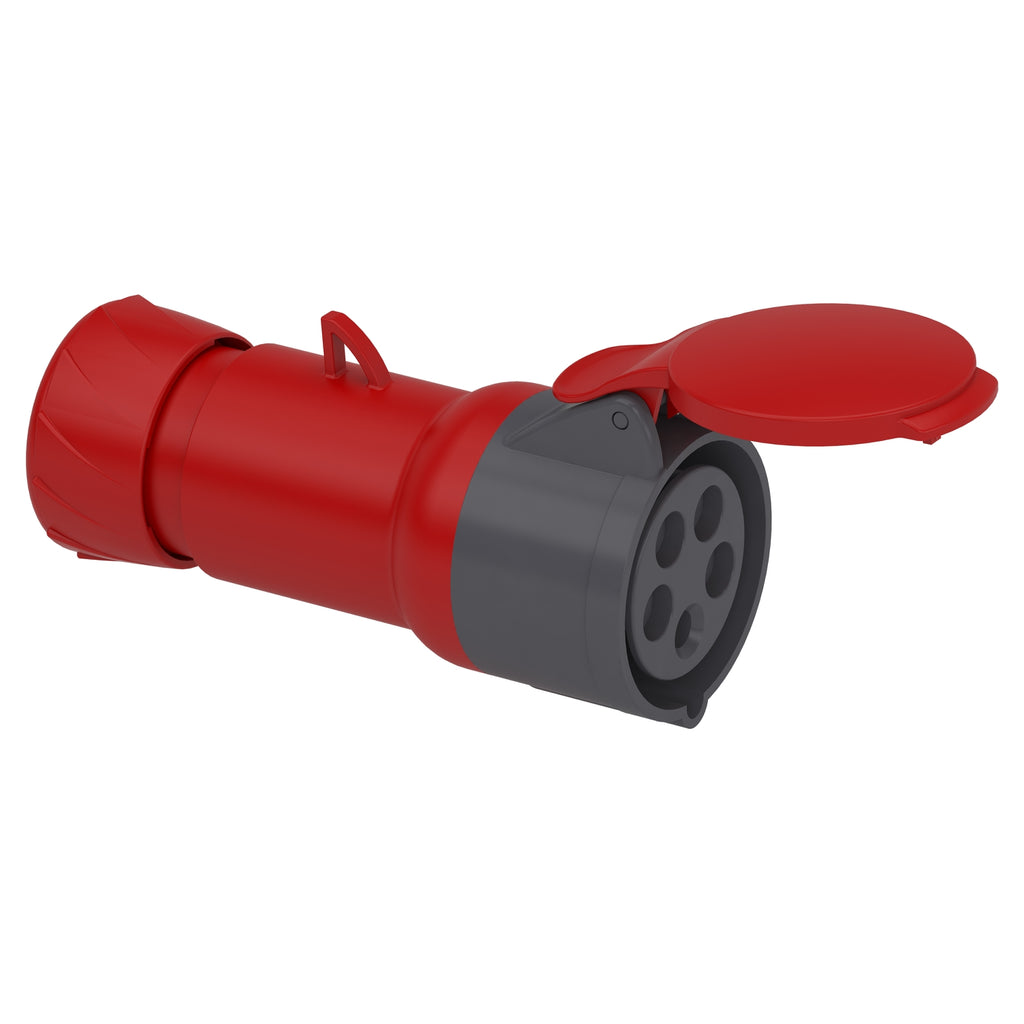

Industrial Socket Schneider Mobile Socket 5x16A Red/White IP44 PKF16M435

Roll over image to zoom in

Industrial Socket Schneider Mobile Socket 5x16A Red/White IP44 PKF16M435

Name: Industrial Socket Schneider Mobile Socket 5x16A Red/White IP44 PKF16M435
Brand: Schneider
SKU: 0008334
Price: 139000.0 IDR
Availability: InStock

Save 47%

SchneiderSKU: 0008334

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
Range	Mureva
Product or component type	Wander socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial

Complementary
Plug, socket, control station shape	Straight
[In] rated current	16 A
[Ue] rated operational voltage	380...415 V
Network frequency	50/60 Hz
ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections - terminals	Captive screws
Cable cross section	1…4 mm²
Cable outer diameter	8…15 mm
Cable entry	Fair lead Cable gland
Thread type	Pg 21
Net weight	0.21 kg
height	97 mm
Width	97 mm
Depth	153 mm
Colour	Grey (RAL 7035)
Voltage colour	Red

Environment
standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
