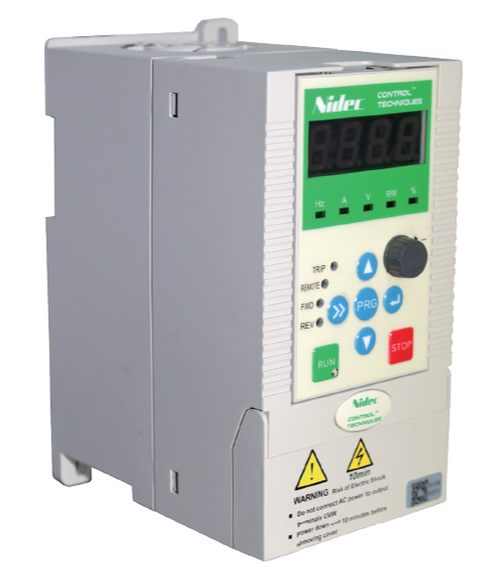

Inverter Nidec 15KW 3P 380KW NE300-4T0150G/0185PB-PG24

Roll over image to zoom in

Inverter Nidec 15KW 3P 380KW NE300-4T0150G/0185PB-PG24

Name: Inverter Nidec 15KW 3P 380KW NE300-4T0150G/0185PB-PG24
Brand: Nidec
SKU: 0018957
Price: 10123200.0 IDR
Availability: InStock

NidecSKU: 0018957

filler

Share this product

input
Rated power/ frequency : NE200-2Sxxxx: 1-phase 200V ~ 240V; 50Hz/60Hz
NE200-4Txxxx: 3-phase 380V ~ 440V; 50Hz/60Hz
Voltage range : NE200-2Sxxxx: 176V ~ 264V; Voltage unbalance degree: < 3% ; permissible frequency fluctuation: ±5%
NE200-4Txxxx: 304V ~ 456V; Voltage unbalance degree: < 3% ; permissible frequency fluctuation: ±5%

Output
Voltage range NE200-2Sxxxx: 0 ~ 200V/440V; NE200-4Txxxx: 0 ~ 380V/440V
Overload capacity Type G: 150% rated current 1min, 180% rated current 20s
Type P: 120% rated current 1min, 150% rated current 1s

Product functions
Key functions: Torque/speed control mode switching, Multi-function input/ output terminals, under voltage regulation, AC operation grounding switching, torque limit, multi step operation, slip compensation, PID regulation, simple PLC, current control, manual/ automatic torque boost, current limit, AVR function.
Frequency setup Keypad, terminal Up/Down, Communication, Analogue input AI1/AI2

Output frequency : 0.00 ~ 550.0Hz
Startup frequency : 0.00 ~ 60.00Hz
Acc/Dec time : 0.01 ~ 3600.0s
Dynamic braking : 400V drive: braking unit action voltage: 650 ~ 750V;
200V drive: braking unit action voltage: 360 ~ 390V;
DC injection braking : DC braking activation frequency: 0.00 ~ 550.0Hz
DC braking current : G type 0.0 ~ 100.0%; P type 0.0 ~ 80.0%
DC braking time : 0.0 ~ 30.0s; Quick DC brake activation without lag time
Magnetic flux braking : Fast deceleration through adding motor magnetic flux
