Description

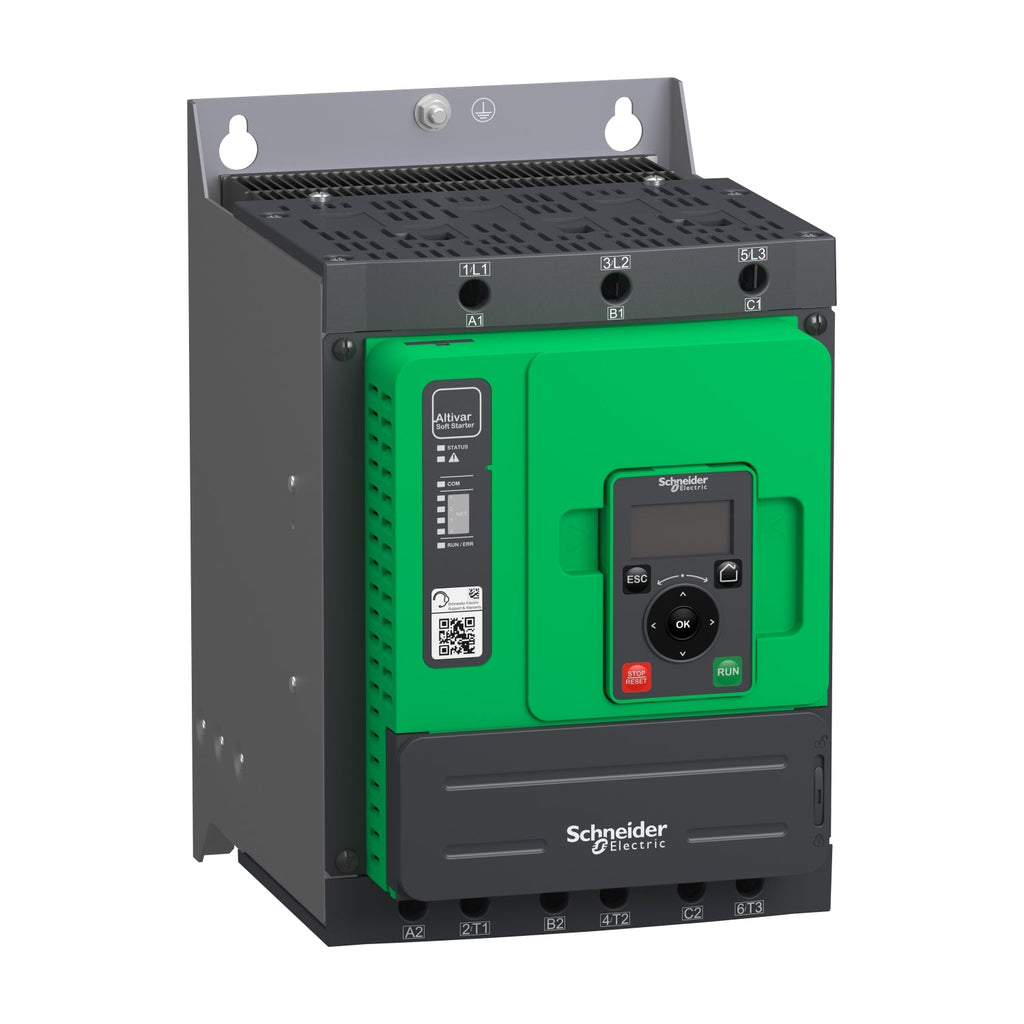

| Range of Product | Altivar Soft Starter ATS480 |
|---|---|
| Product or Component Type | Soft starter |
| product destination | Asynchronous motors |
| Product Specific Application | Process and infrastructures |
| Device short name | ATS480 |
| Phase | 3 phase |
| Utilisation category | AC-3A AC-53A |
| Ue power supply voltage | 208...690 V - 15...10 % |
| power supply frequency | 50...60 Hz - 20...20 % |
| [Ie] rated operational current | Normal duty 47.0 A 104 °F (40 °C)) |
| rated current in heavy duty | 38.0 A at 104 °F (40 °C) heavy duty |
| Torque control | True |
| IP Degree of Protection | IP20 |
| Motor power kW | 11.0 kW 230 V in the motor supply line normal duty 9.0 kW 230 V in the motor supply line heavy duty 22.0 kW 400 V in the motor supply line normal duty 18.5 kW 400 V in the motor supply line heavy duty 22.0 kW 440 V in the motor supply line normal duty 18.5 kW 440 V in the motor supply line heavy duty 30.0 kW 500 V in the motor supply line normal duty 22.0 kW 500 V in the motor supply line heavy duty 30.0 kW 525 V in the motor supply line normal duty 22.0 kW 525 V in the motor supply line heavy duty 37.0 kW 660 V in the motor supply line normal duty 30.0 kW 660 V in the motor supply line heavy duty 37.0 kW 690 V in the motor supply line normal duty 30.0 kW 690 V in the motor supply line heavy duty 22.0 kW 230 V to the motor delta terminals normal duty 18.5 kW 230 V to the motor delta terminals heavy duty 45.0 kW 400 V to the motor delta terminals normal duty 30.0 kW 400 V to the motor delta terminals heavy duty |
| Maximum Horse Power Rating | 10.0 hp 208 V heavy duty 15.0 hp 230 V normal duty 9.0 hp 230 V heavy duty 30.0 hp 460 V normal duty 25.0 hp 460 V heavy duty 40.0 hp 575 V normal duty 30.0 hp 575 V heavy duty |
| Option card | Communication module Profibus DP V1 Communication module PROFINET Communication module Modbus TCP/EtherNet/IP Communication module CANopen daisy chain Communication module CANopen Sub-D Communication module CANopen open style |
| Device connection | In the motor supply line To the motor delta terminals |
|---|---|
| [Us] control circuit voltage | 110...230 V AC 50/60 Hz - 15...10 % |
| Apparent power | 0.09 kVA |
| Integrated motor overload protection | True |
| motor thermal protection class | Class 10E |
| Protection type | Phase failure line Integrated thermal protection motor Thermal protection starter Current overload motor Underload motor Excessive starting time, locked rotor motor Motor phase loss motor Line supply phase loss line Line supply phase loss motor Thermal protection motor |
| current limiting %In (5 x Ie maximum) | 150…700 % |
| [In] Rated current pwr loss specifctn | 47.0 A |
| Power loss static current independent | 25.0 W |
| Power loss per device current dependent | 122.0 W |
| Standards | IEC 60947-4-2 UL 60947-4-2 IEC 60664-1 |
| Product Certifications | CE cULus CCC UKCA RCM EAC DNV ABS BV CCS |
| marking | CE CCC UKCA EAC RCM CULus |
| [Uc] control circuit voltage | 24 V DC |
| Discrete input number | 4 |
| Discrete input type | STOP) logic inputs, 3500 Ohm RUN) logic inputs, 3500 Ohm DI3) programmable as logic input, 3500 Ohm DI4) programmable as logic input, 3500 Ohm |
| Input compatibility | STOP discrete input level 1 PLC IEC 61131-2 RUN discrete input level 1 PLC IEC 61131-2 DI3 discrete input level 1 PLC IEC 61131-2 DI4 discrete input level 1 PLC IEC 61131-2 |
| Discrete input logic | Programmable digital input < 5 V |
| Relay output number | 3 |
| Relay output type | Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable |
| Minimum switching current | 100 mA 12 V DC relay outputs |
| Maximum switching current | Relay outputs 2 A 250 V AC Relay outputs 2 A 30 V DC |
| Discrete output number | 2 |
| Discrete output type | DQ1) programmable digital output <= 30 V DQ2) programmable digital output <= 30 V |
| Output compatibility | Open collector level 1 PLC IEC 65A-68 |
| Analogue input number | 1 |
| Analogue input type | AI1/PTC PTC/Pt 100 temperature probe PTC2 PTC/Pt 100 temperature probe PTC3 PTC/Pt 100 temperature probe |
| Analogue output number | 1 |
| Analogue output type | Current output AQ1 0...20 mA or 0...10 V 500 Ohm |
| Communication Port Protocol | Modbus serial |
| Connector Type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | 2-wire RS 485 |
| Transmission Rate | 1200...256000 bit/s |
| Transmission frame | RTU |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance Modbus serial |
| Number of addresses | 0…227 Modbus serial |
| Method of access | Slave Modbus serial |
| Function Available | External bypass control Pre-heating Smoke extraction Multi-motor cascade Second motor set User management Ports and services hardening Security event logging Cybersecure firmware update Single direction |
| Display screen available | True |
| Operating position | Vertical +/- 10 degree |
| Height | 10.83 in (275.0 mm) |
| Width | 6.30 in (160.0 mm) |
| Depth | 7.99 in (203.0 mm) |
| Net Weight | 10.80 lb(US) (4.9 kg) |
| Electromagnetic compatibility | Conducted and radiated emissions level A IEC 60947-4-2 Conducted and radiated emissions with bypass level B IEC 60947-4-2 Damped oscillating waves level 3 IEC 61000-4-12 Electrostatic discharge level 3 IEC 61000-4-11 Immunity to electrical transients level 4 IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 Voltage/current impulse level 3 IEC 61000-4-5 |
|---|---|
| Pollution degree | Level 3 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] Rated Insulation Voltage | 690 V |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Relative humidity | 0…95 % without condensation or dripping water IEC 60068-2-3 |
| Ambient air temperature for operation | 104…140 °F (40…60 °C) with current derating of 2 % per °C) 5…104 °F (-15…40 °C) without derating) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Maximum deflection under vibratory load (during storage) | 1.75 mm at 2...9 Hz |
| Maximum deflection under vibratory load (during transport) | 1.75 mm at 2...9 Hz |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum acceleration under vibratory load (during storage) | 15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz |
| Maximum acceleration under vibratory load (during transport) | 15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under shock load (during storage) | 100 m/s² at 11 ms |
| Maximum acceleration under shock load (during transport) | 100 m/s² at 11 ms |
