Description

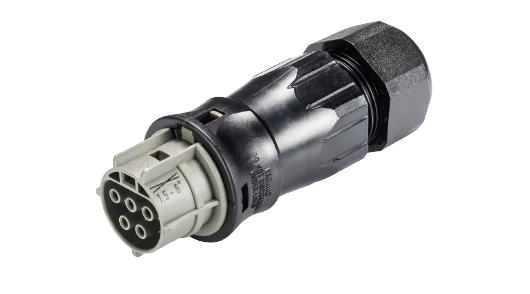

Female Connector RST25i3S B1 ZR2 SW
Art # : 99.57500.7
General
Rated Current : 25A, 250/400VAC
Marking of poles : L,N,PE,1,2
Color : Gray
Connection type : Screw Connection
Cable Dia Min/Max : 13mm~18mm
Cable size Min/max : 1.5mm2~4mm2
Housing Material : Polyamide
Contact Material : CuZn (Silver Plated)
Protection : IP66/68 (3M,2h)/ IP69
Insulation components continuous temperature : 100C
