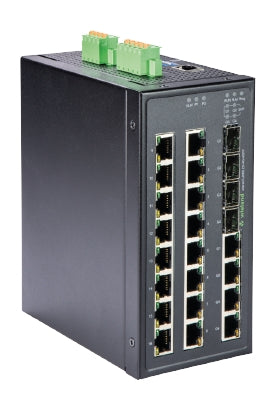

wieNET IP Switch, 16-Port Managed Fast Ethernet Switch with 4 SFP Slots, 4 Ports 100BASE-FX/1000BASE-X SFP slot, ERPS Ring (recovery time <(><<)> 20 ms @ 40 switches), STP/RSTP/MSTP for netzwork-redundancy, Remote Management by Web Browser, Telnet console, serial console and Windows Utility, Profinet v2 Class B compatible, GSDML device file for Integration in Profinet-Networks, IP30 housing vertical mounting, Redundant Power Supply 9-57 V DC
Commercial data
Article number |
83.040.0223.0 |
Article description |
IP switch IP SWITCH WIENET L2MS 20-4G-4SFP |
EAN |
4049088507953 |
Order Unit |
1 piece(s) |
Country of origin |
TW |
Customs tariff number |
85176200 |
Dimensions
Length packed |
257 mm |
Width packed |
211 mm |
Height packed |
125 mm |
Gross weight packed |
1900 g |
Net weight single part |
1400 g |
Volume packed |
6778.375 ccm |
Allgemein
Mounting method |
DIN rail (top hat rail) |
Degree of protection (IP) |
IP30 |
Housing material |
Steel |
Manageable |
yes |
Ethernet |
yes |
Power over Ethernet |
No |
Fast Ethernet |
yes |
Gigabit Ethernet |
yes |
Number of ports 10/100 Mbps RJ45 |
16 |
10 Gigabit Ethernet |
No |
Number of ports 10/100/1000 Mbps RJ45 |
4 |
Number of ports 100 Mbps SC |
0 |
Type of electric connection |
Push-In connection//true |
LED status indication |
ALM, P1, P2, RUN, Ring, R.M., 4xSFP |
Connector cross section |
0,25mm²...2,5mm² (AWG26...AWG12) |
Wire strip length |
8 mm |
Technical data
Voltage type |
DC |
Min. operating temperature |
-20 °C |
Max. operation temperature |
70 °C |
Storage temperature / transport min. |
-40 °C |
Storage temperature / transport max. |
85 °C |
relative humidity min. |
5 % |
relative humidity max. |
95 % |
Net weight |
1200 g |
Redundant power supply |
2 power inputs |
Supply circuit
Voltage type |
DC |
Operating voltage min. |
9 V |
Operating voltage max. |
57 V |
Input current, max. |
2 A |
Dimensions
Depth |
138 mm |
Width |
60.3 mm |
Height |
164 mm |
Weight |
1200 g |
Classification
ECLASS 11 |
|
ECLASS 8.1 |
19170106 |
ETIM 7.0 |
EC000734 |
ETIM 6.0 |
EC000734 |
ETIM 5.0 |
EC000734 |
ETIM 4.0 |
EC000734 |
