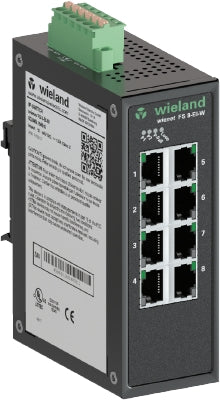

wieNET IP Switch, 8-Port Entry-Level Managed Fast Ethernet Switch with Ethernet-IP support, 8 Ports 10/100 Mbps RJ45, IXM function enables fast deployment, Ethernet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions), Management SNMP v1/v2/v3, Web-Browser, Standard MIB, Private MIB, Power Supply 8,4 V … 52,8 V DC, Operating temperature -40 bis 75 ° C (-40°F ... 167°F)
Commercial data
Article number |
83.040.1500.0 |
Article description |
IP switch WIENET FS 8-EI-W |
EAN |
4049088435560 |
Order Unit |
1 piece(s) |
Country of origin |
CN |
Customs tariff number |
85176200 |
Dimensions
Length packed |
216 mm |
Width packed |
165 mm |
Height packed |
68 mm |
Gross weight packed |
765 g |
Net weight single part |
727 g |
Volume packed |
2423.52 ccm |
Allgemein
Mounting method |
DIN rail (top hat rail) |
Degree of protection (IP) |
IP30 |
Housing material |
Metal |
Manageable |
yes |
Ethernet |
yes |
Power over Ethernet |
No |
Fast Ethernet |
yes |
Gigabit Ethernet |
No |
Number of ports 10/100 Mbps RJ45 |
8 |
supported protocols |
Ethernet/IP |
Diagnostic LEDs |
Power/Link status/Data/Data rate |
10 Gigabit Ethernet |
No |
Number of ports 100 Mbps SC |
0 |
Type of electric connection |
Push-In connection//true |
Connector cross section |
0,25mm²...2,5mm² (AWG26...AWG12) |
Wire strip length |
8 mm |
Technical data
Voltage type |
DC |
Min. operating temperature |
-40 °C |
Max. operation temperature |
75 °C |
Storage temperature / transport min. |
-40 °C |
Storage temperature / transport max. |
85 °C |
relative humidity min. |
10 % |
relative humidity max. |
95 % |
Net weight |
550 g |
Redundant power supply |
2 power inputs |
Supply circuit
Voltage type |
DC |
Operating voltage min. |
12 V |
Operating voltage max. |
48 V |
Input current, max. |
1.5 A |
Dimensions
Depth |
84 mm |
Width |
43 mm |
Height |
120 mm |
Weight |
550 g |
Classification
ECLASS 11 |
|
ECLASS 8.1 |
19170106 |
ETIM 7.0 |
EC000734 |
ETIM 6.0 |
EC000734 |
ETIM 5.0 |
EC000734 |
ETIM 4.0 |
EC000734 |
Product compliance
REACH-SVHC conformity status |
Compliant |
