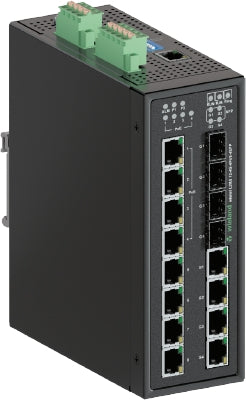

wieNET IP Switch, 12-Port Managed Gigabit PoE Switch with 4 SFP slots, 8 Ports 10/100/1000BaseT(X) RJ45, therefrom 4 with PoE based on IEEE 802 .3 af/at , 4 Ports 100BASE-FX / 1000BASE-X SFP slot, ERPS Ring (recovery time < 20 ms @ 40 switches), STP/RSTP/MSTP for network redundancy, Remo te Management with Web browser, Telnet console, serial console and Windo ws Utility, Profinet v2 Class B compatible, GSDML device description fil e for integration in Profinet-Networks, IP30 housing vertical design, Po wer supply 45-57 VDC in PoE-802.3af mode/51-57 VDC in PoE-802.3at mode
Commercial data
| Article number |
83.040.0221.0 |
| Article description |
IP switch WIENET L2MS 12-4G-4PoE- |
| EAN |
4049088401497 |
| Order Unit |
1 piece(s) |
| Country of origin |
TW |
| Customs tariff number |
85176200 |
Dimensions
| Length packed |
257 mm |
| Width packed |
211 mm |
| Height packed |
125 mm |
| Gross weight packed |
1585 g |
| Net weight single part |
800 g |
| Volume packed |
6778.375 ccm |
Allgemein
| Mounting method |
DIN rail (top hat rail) |
| Degree of protection (IP) |
IP30 |
| Housing material |
Metal |
| Manageable |
yes |
| Ethernet |
yes |
| Power over Ethernet |
yes |
| Fast Ethernet |
yes |
| Gigabit Ethernet |
yes |
| Number of ports 10/100 Mbps RJ45 |
8 |
| supported protocols |
Profinet (CC A, CC B), Ethernet-IP, Modbus-TCP |
| 10 Gigabit Ethernet |
No |
| Number of ports 10/100/1000 Mbps RJ45 |
4 |
| Number of ports 100 Mbps SC |
0 |
| SFP ports |
4 |
| Type of electric connection |
Push-In connection//true |
| LED status indication |
P1, P2, RUN, R.M., ALM, 4xPoE,4xSFP |
| Connector cross section |
0,25mm²...2,5mm² (AWG26...AWG12) |
| Wire strip length |
9 mm |
Technical data
| Voltage type |
DC |
| Min. operating temperature |
-20 °C |
| Max. operation temperature |
70 °C |
| Storage temperature / transport min. |
-40 °C |
| Storage temperature / transport max. |
85 °C |
| relative humidity min. |
5 % |
| relative humidity max. |
95 % |
| Net weight |
800 g |
| Redundant power supply |
2 power inputs |
Supply circuit
| Voltage type |
DC |
| Operating voltage min. |
9 V |
| Operating voltage max. |
57 V |
| Input voltage PoE (802.3af) |
45V - 57V |
| Input voltage PoE+ (802.3) |
51V - 57V |
| Input current, max. |
2 A |
Dimensions
| Depth |
138 mm |
| Width |
60.3 mm |
| Height |
164 mm |
| Weight |
800 g |
Classification
| ECLASS 11 |
|
| ECLASS 8.1 |
19170106 |
| ETIM 7.0 |
EC000734 |
| ETIM 6.0 |
EC000734 |
| ETIM 5.0 |
EC000734 |
| ETIM 4.0 |
EC000734 |
Product compliance
| REACH-SVHC conformity status |
Compliant |
