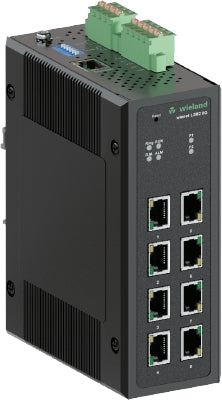

wieNET IP Switch, 8-Port Managed Gigabit Switch, 8 Ports 10/100/1000Base T(X) RJ45, ERPS Ring (recovery time < 20 ms @ 40 switches), STP/RSTP/MST P for network redundancy, Remote Management with Web browser, Telnet con sole, serial console and Windows Utility, Profinet v2 Class B compatible , GSDML device description file for integration in Profinet-Networks, IP 30 housing vertical design, Power supply 9-48 V DC/18-30 V AC
Commercial data
| Article number |
83.040.0310.0 |
| Article description |
IP switch WIENET L2MS 8G |
| EAN |
4049088401558 |
| Order Unit |
1 piece(s) |
| Country of origin |
TW |
| Customs tariff number |
85176200 |
Dimensions
| Length packed |
224 mm |
| Width packed |
188 mm |
| Height packed |
11 mm |
| Gross weight packed |
1050 g |
| Net weight single part |
850 g |
| Volume packed |
463.232 ccm |
Allgemein
| Mounting method |
DIN rail (top hat rail) |
| Degree of protection (IP) |
IP30 |
| Housing material |
Metal |
| Manageable |
yes |
| Ethernet |
yes |
| Power over Ethernet |
No |
| Fast Ethernet |
yes |
| Gigabit Ethernet |
yes |
| supported protocols |
Profinet (CC A, CC B), Ethernet-IP, Modbus-TCP |
| 10 Gigabit Ethernet |
No |
| Number of ports 10/100/1000 Mbps RJ45 |
8 |
| Number of ports 100 Mbps SC |
0 |
| Type of electric connection |
Push-In connection//true |
| LED status indication |
P1, P2, ALM, RUN, Ring, R.M. |
| Connector cross section |
0,25mm²...2,5mm² (AWG26...AWG12) |
| Wire strip length |
9 mm |
Technical data
| Voltage type |
DC |
| Min. operating temperature |
-20 °C |
| Max. operation temperature |
70 °C |
| Storage temperature / transport min. |
-40 °C |
| Storage temperature / transport max. |
85 °C |
| relative humidity min. |
5 % |
| relative humidity max. |
95 % |
| Net weight |
850 g |
| Redundant power supply |
2 power inputs |
Supply circuit
| Voltage type |
DC |
| Operating voltage min. |
9 V |
| Operating voltage max. |
57 V |
| Input current, max. |
1 A |
Dimensions
| Depth |
113 mm |
| Width |
54 mm |
| Height |
145 mm |
| Weight |
850 g |
Classification
| ECLASS 11 |
|
| ECLASS 8.1 |
19170106 |
| ETIM 7.0 |
EC000734 |
| ETIM 6.0 |
EC000734 |
| ETIM 5.0 |
EC000734 |
| ETIM 4.0 |
EC000734 |
Product compliance
| REACH-SVHC conformity status |
Compliant |
