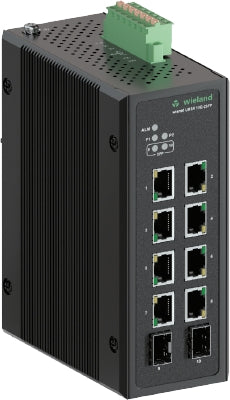

WIENET IP Switch Unmanaged Gigabit Advanced, 8 Ports RJ45 10/100/1000Mbps, 2 Ports SFP 1000 Mbps Uplink, Auto-negotiation, Auto- MDI/MDI-X, Store and forward transmission, Data flow control: Back pressure and pause frame-based, MAC Address Table: 16 k, Packet Buffer Size: 2 MBits, Jumbo Frame: 10 kBytes, IEEE 802.1Q for VLAN tagging (Profinet Prioritization), IEEE 802.1p for CoS (Profinet Prioritization), IP30 Housing: Vertical enclosure/metal, Input power supply: Redundant 12-57 V DC, Operating temperature: -40°-75°C
Commercial data
| Article number |
83.040.0115.0 |
| Article description |
IP switch WIENET UMSA 10G-2SFP |
| EAN |
4049088508806 |
| Order Unit |
1 piece(s) |
| Country of origin |
TW |
| Customs tariff number |
85176200 |
Dimensions
| Length packed |
224 mm |
| Width packed |
188 mm |
| Height packed |
112 mm |
| Gross weight packed |
1100 g |
| Net weight single part |
700 g |
| Volume packed |
4716.544 ccm |
Allgemein
| Mounting method |
DIN rail (top hat rail) |
| Degree of protection (IP) |
IP30 |
| Housing material |
aluminum |
| Manageable |
No |
| Ethernet |
yes |
| Power over Ethernet |
yes |
| Fast Ethernet |
yes |
| Diagnostic LEDs |
Power/Link status/Data/Data rate |
| 10 Gigabit Ethernet |
No |
| Number of ports 10/100/1000 Mbps RJ45 |
8 |
| Number of ports 100 Mbps SC |
0 |
| SFP ports |
2 |
Technical data
| Voltage type |
DC |
| Min. operating temperature |
-40 °C |
| Max. operation temperature |
75 °C |
| Storage temperature / transport min. |
-40 °C |
| Storage temperature / transport max. |
85 °C |
| relative humidity min. |
5 % |
| relative humidity max. |
95 % |
| Net weight |
700 g |
| Redundant power supply |
2 power inputs |
Supply circuit
| Voltage type |
DC |
| Operating voltage min. |
12 V |
| Operating voltage max. |
57 V |
Dimensions
| Depth |
113 mm |
| Width |
54 mm |
| Height |
145 mm |
| Weight |
700 g |
Classification
| ECLASS 11 |
|
| ECLASS 8.1 |
19170106 |
| ETIM 7.0 |
EC000734 |
| ETIM 6.0 |
EC000734 |
| ETIM 5.0 |
EC000734 |
| ETIM 4.0 |
EC000734 |
