INPUT VOLTAGE : 230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77
BATTERY : 2.4V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others
LAMP USED :
RATED PERIOD : > 2 hrs, 4 hrs & others
MODE : Non-maintained
OPERATION TEMPERATURE : ta 40 °C
CHARGE MONITOR : Super bright Green LED 5mm Ø
RECHARGE PERIOD : 16 ~ 24 hrs
EMERGENCY LUMINANCE : > 8 cd/m2
ELECTROMAGNETIC FIELD : 17m gause @ 0.1m
CHARGER : Hybrid controlled charger
PROTECTION : Low volt cut-off to prevent battery over discharge
Incoming AC fuse and Battery DC fuse
Tropical climate protection coating on hybrid control circuit
CONSTRUCTION : Moulded Fire Retardant ABS base PC diffuser

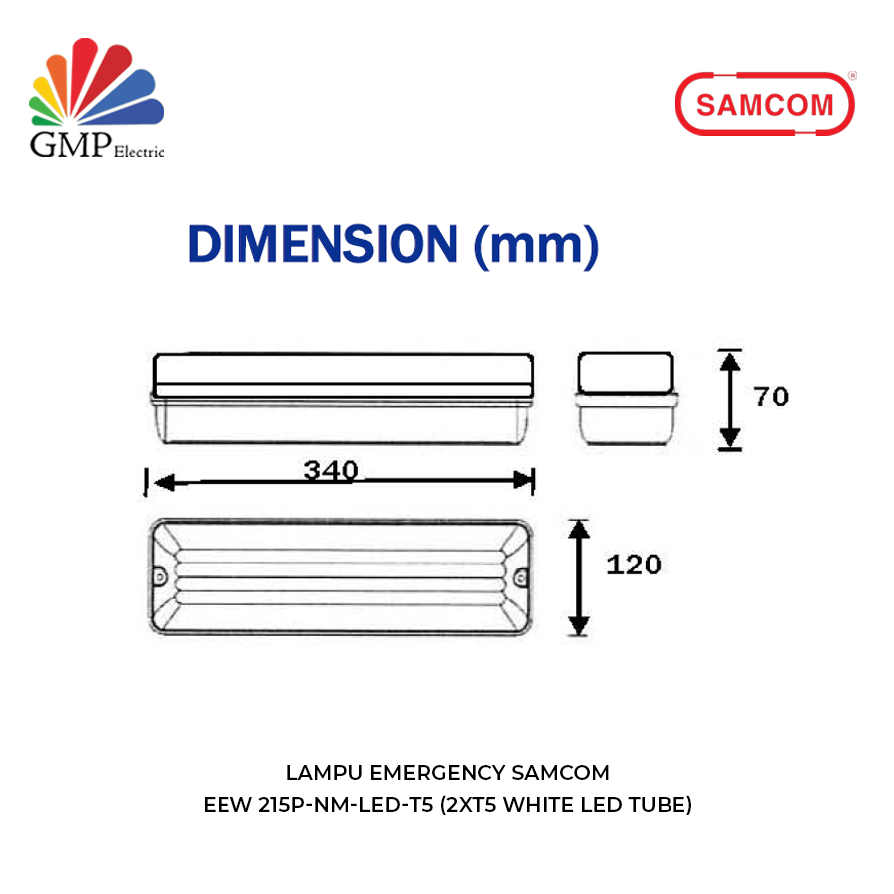

DIMENSION : 340mm(L) x 120mm(W) x 70mm(H)
WEIGHT : 1.40kg (Net) / 1.60kg (Gross)
PACKING : One unit per carton
CARTON / DIMENSION : Double wall corrugated / 360mm(L) x 130mm(W) x 85mm(H)
COMPLIANCE : CP 19:2000, SS263: Part 2: 1998, IEC 598-2-22, AS 2293, SS 364
