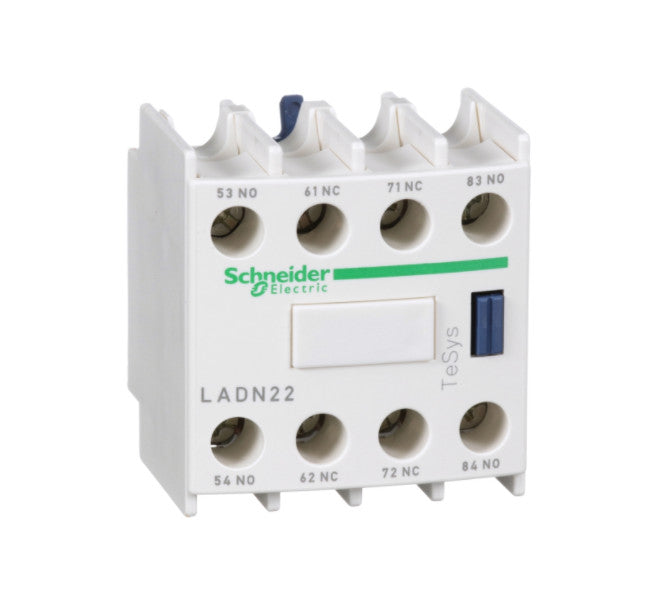

Auxiliary Contact BlockSchneider LADN22 F/LC1D white 2NO+2NC

TeSys

TeSys D

LADN

Auxiliary contact block

TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F

Front

2 NO + 2 NC

Instantaneous

690 V AC 25...400 Hz

690 V conforming to IEC 60947-5-1
600 V - certifications CSA
600 V - certifications UL

10 A (at 60 ��C)

EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5

IECEE CB Scheme
UL
CSA
CCC
EAC

140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1

100 A 60 ��C 1 s
120 A 60 ��C 500 ms
140 A 60 ��C 100 ms

GG fuse 10 A

30 Mcycles

5 mA

17 V

1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact

> 10 MOhm

Screw clamp terminals 1 cable(s) 1���2.5 mm��flexible with cable end
Screw clamp terminals 1 cable(s) 1���2.5 mm��flexible without cable end
Screw clamp terminals 2 cable(s) 1���2.5 mm��flexible with cable end
Screw clamp terminals 2 cable(s) 1���2.5 mm��flexible without cable end
Screw clamp terminals 1 cable(s) 1���2.5 mm��solid
Screw clamp terminals 2 cable(s) 1���2.5 mm��solid

1.7 N.m - with screwdriver flat �� 6 mm
1.7 N.m - with screwdriver Philips No 2

48 mm

44 mm

42 mm

0.05 kg
