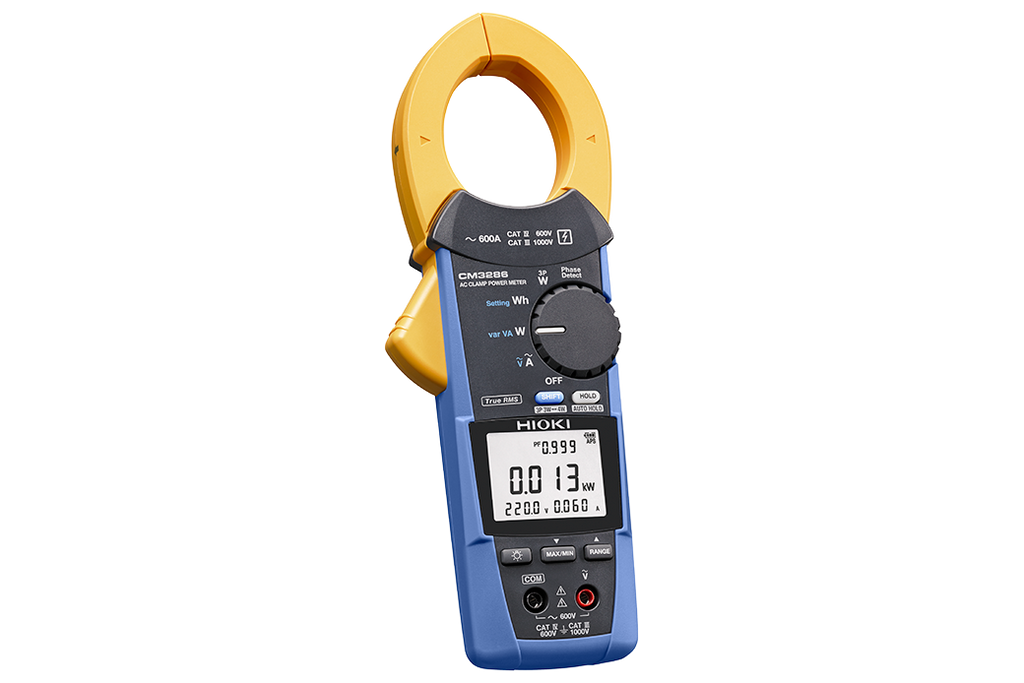

Clamp Meter Hioki CM3286-01 with Bluetooth

Roll over image to zoom in

Clamp Meter Hioki CM3286-01 with Bluetooth

Name: Clamp Meter Hioki CM3286-01 with Bluetooth
Brand: HIOKI
SKU: 0013094
Price: 13520000.0 IDR
Availability: OutOfStock

★★★★★(5)

16 Terjual

HIOKISKU: 0013094

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Basic specifications

Accuracy guaranteed: 1 year

Measurement line	Single-phase, Three-phase (balanced with no distortion)
Measurement items	Voltage, Current, Voltage/Current peak, Active/Reactive/Apparent power, Power factor, Phase angle (1), Frequency, Simple Active Energy Consumption (Single-phase) [With Z3210 installed (2)] Voltage/Current harmonics
AC voltage range	[Measurement range] 80.0 V to 600.0 V, Single range, Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
AC current range	[Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
Power range	[Single phase] 05 kW to 360.0 kW Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 3-wire] 0.020 kW to 623.5 kW Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 4-wire] 0.040 kW to 1080 kW Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1)
Harmonic levels	[With Z3210 installed (*2)] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
Other functions	[Phase angle (*1)] lead -180.0° to lag 179.9°, [Power factor] -10 to 10 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, MAX/MIN/AVG value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc.
Dustproof and waterproof	IP50 (for measurement of current in insulated conductors or storage in completely dry conditions)
Power supply	LR03 Alkaline battery ×2 Continuous use: approx. 25 hr (without Z3210 installed), approx. 18 hr. (with Z3210 installed and using wireless communications) Other conditions: 100 A AC measurement, backlight off, 23°C reference value
Core jaw dia.	φ 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm
Dimensions and mass	65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D, 450 g (15.9 oz)
Included accessories	Connection Cord L9257 ×1, LR03 Alkaline battery ×2, Carrying Case C0203 ×2, Instruction Manual ×2, Operating Precautions ×1

*1:Phase angle obtained from zero cross of current and voltage.
*2:Harmonics can be displayed with our free app GENNECT Cross.

Countries and regions where wireless operation is currently supported (CM3286-01)

Last update: November 2022

Countries and regions where wireless operation is currently supported	Austria, Bangladesh, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Japan, Kenya, Korea, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, Norway, Peru, Philippines, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Vietnam
Note	Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law.
