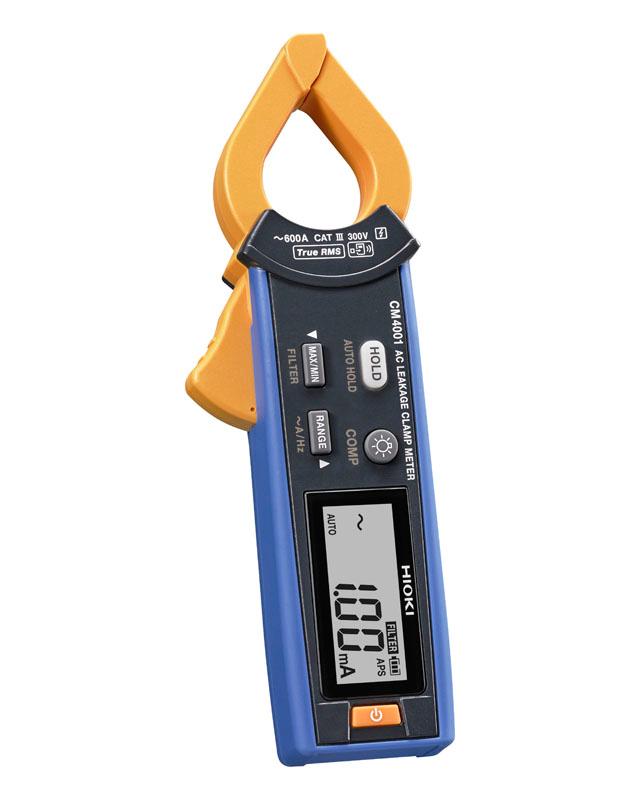

HIOKI AC LEAKAGE CLAMP METER CM4001

Name: HIOKI AC LEAKAGE CLAMP METER CM4001
Brand: Hioki
Price: 6145400.0 IDR
Availability: OutOfStock

Share this product

Basic specifications

Accuracy guaranteed: 1 year

AC Current range	60 mA/ 600.0 mA/ 60 A/ 60 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS) Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60 mA to 60 A), ±2.5% rdg ±5 dgt (60 A to 600.0 A) Guaranteed accuracy: from 0.60 mA to 600.0A
AC Voltage range	N/A
Frequency range	40.0 Hz to 999.9 Hz
Crest factor	4.5 (4000 counts or less) 3 (more than 4000 counts, 6000 counts or less)
Filter function	Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function	N/A
Harmonic levels	[With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio *Harmonics can be displayed with our free app GENNECT Cross.
Other functions	Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
Display	Display refresh rate: 5 times/s
Power supply	LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)
Core jaw diameter	φ 24 mm (0.94 in)
Dimensions and mass	37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
Included accessories	Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1
